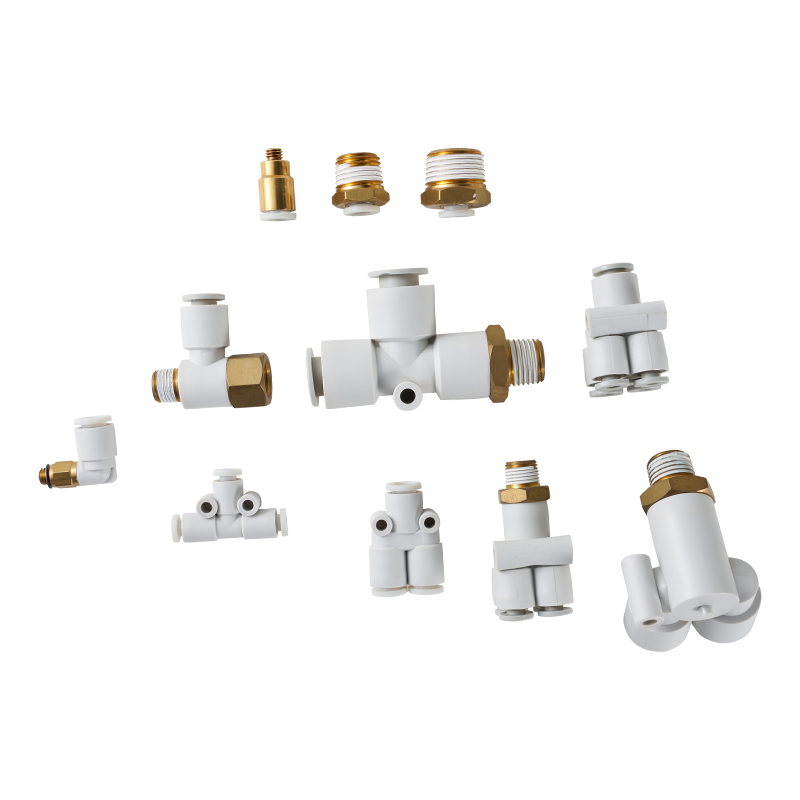

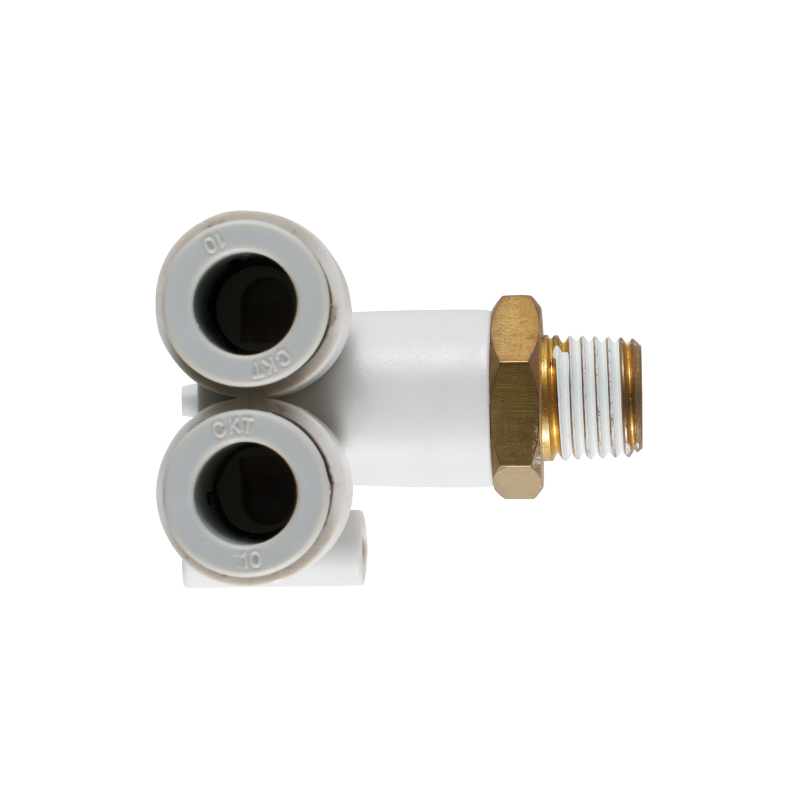

سلسلة KQ2 مناسبة بلمسة واحدة سلسلة KQ2 مناسبة بلمسة واحدة
  • سلسلة KQ2 مناسبة بلمسة واحدة
  • سلسلة KQ2 مناسبة بلمسة واحدة
تركيب بلمسة واحدة

سلسلة KQ2 مناسبة بلمسة واحدة

يعد التركيب بلمسة واحدة من سلسلة KQ2 مكونًا أساسيًا مصممًا لتبسيط عمليات توصيل خطوط أنابيب السوائل. يركز مفهوم التصميم الأساسي الخاص به على تحقيق عمليات التثبيت والإزالة السريعة والسهلة مع ضمان استقرار الاتصال وسلامته، وهو مناسب لمجموعة متنوعة من سيناريوهات نقل السوائل.

الراحة الأساسية: الميزة البارزة لهذه السلسلة هي آلية التشغيل ذات الخطوة الواحدة، والتي عادةً ما تتطلب ضغطة واحدة فقط لإكمال الإدخال الموثوق لتركيبات الأنابيب وتشكيل ختم فعال، مما يبسط عملية التثبيت بشكل كبير.

موثوقية الاتصال: يحتوي التصميم على هيكل قفل دقيق مدمج، والذي يتم قفله تلقائيًا بعد إدخال تركيب الأنبوب بشكل صحيح، مما يمنع بشكل فعال الانفصال العرضي تحت الاهتزاز أو تقلبات الضغط أو السحب العرضي، ويضمن استقرار نقطة الاتصال على المدى الطويل.

ضمان الختم: يمكن لمكونات الختم المتكاملة والمحسنة أن توفر أداء إغلاق مستمر وفعال ضمن ظروف التطبيق المحددة ونطاق توافق السوائل، مما يقلل من خطر التسرب.

القدرة على التكيف على نطاق واسع: يتم أخذ التوافق بعين الاعتبار في التصميم واختيار المواد، ويمكن أن يتكيف مع مجموعة متنوعة من مواصفات وأنواع الأنابيب الشائعة لتلبية الاحتياجات الأساسية لبناء أنظمة السوائل المختلفة.

راحة الصيانة: تم تصميم آلية التحرير المريحة للسماح بإزالة الأنابيب بسرعة وغير مدمرة عند الضرورة، وتسهيل فحص النظام أو صيانته أو إعادة تنظيمه وتحسين كفاءة الصيانة اللاحقة.

البريد الإلكتروني: manager@cktworld.com
تحميل
السابق:سلسلة KC ذاتية الغلق بلمسة واحدة
التالي:لا يوجد مقال تالي

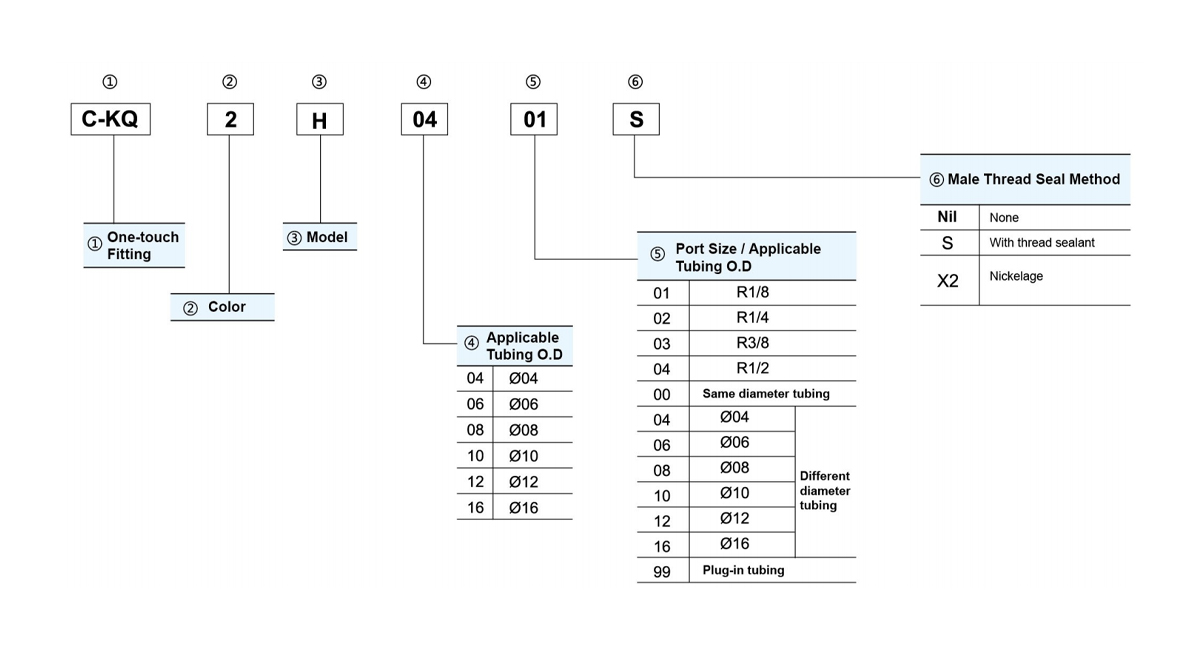

  • السوائل الهواء /ماء
    مادة النحاس
    ماكس التشغيل الضغط 1.0 ميجا باسكال
    فراغ الضغط -100 كيلو باسكال
    دليل الضغط 3.0 ميجا باسكال
    التشغيل درجة الحرارة النطاق الهواء:-5~60℃,Water:0~40℃
    ينطبق الأنابيب مادة نايلون، يوريتان
    ينطبق المناسب الحجم Ø4، Ø6، Ø8، Ø10، Ø12، Ø16

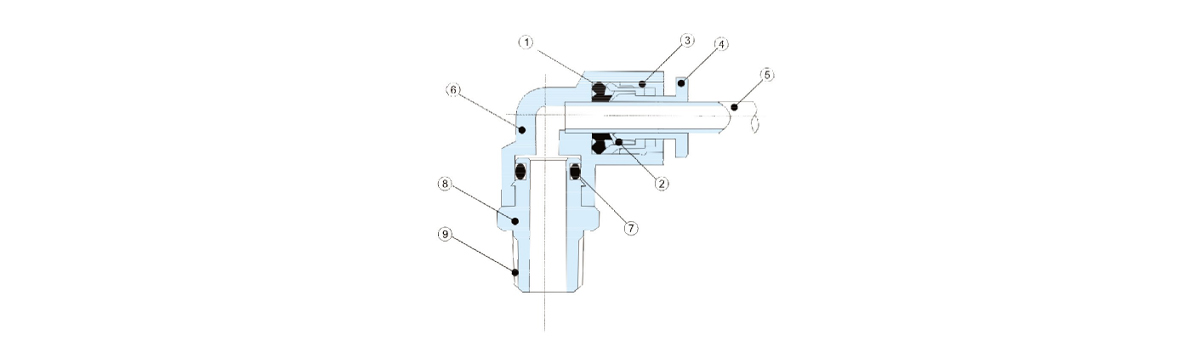

  • ① Seal NBR
    ② Chuck Stainless Steel
    ③ Guide Stainless Steel Or Brass
    ④ Release Button POM
    ⑤ Tubing Nylon Or Urethane
    ⑥ Body PBT
    ⑦ O ring NBR
    ⑧ Material Body Brass
    ⑨ Thread M/R/Rc

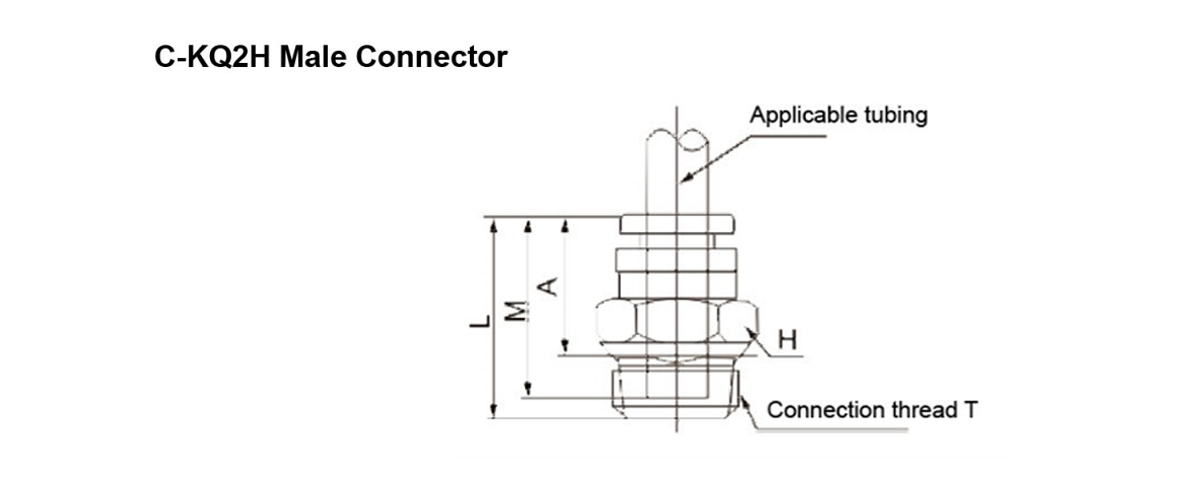

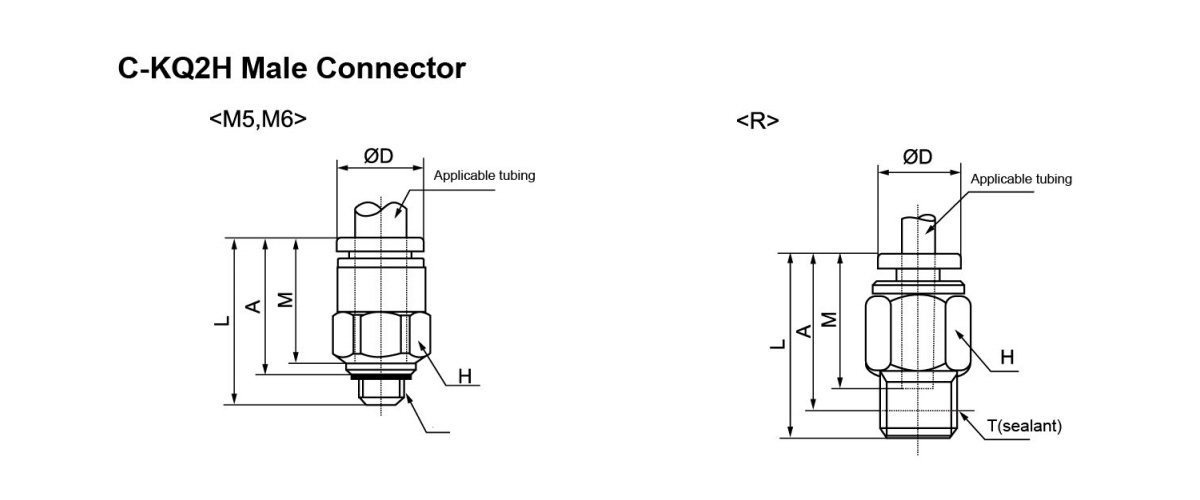

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L A M
    Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2H04-01S 1/8 10 - 22 18 16 5.6 4 9
    C-KQ2H04-02S 1/4 14 - 19.5 13.5 16
    Ø6 C-KQ2H06-01S 1/8 12 - 22.5 18.5 17 13.1 10.4 16
    C-KQ2H06-02S 1/4 14 - 23 17 14
    C-KQ2H06-03S 3/8 17 - 22 15.5 27
    Ø8 C-KQ2H08-01S 1/8 14 - 28 24 18.5 26.1 18.0 21
    C-KQ2H08-02S 1/4 26.5 20.5 19
    C-KQ2H08-03S 3/8 17 - 22 15.5 26
    Ø10 C-KQ2H10-01S 1/8 17 - 30 26 21 26.1 26.1 19
    C-KQ2H10-02S 1/4 33.5 27.5 41.5 29.5 30
    C-KQ2H10-03S 3/8 29 22.5 30
    C-KQ2H10-04S 1/2 22 - 27 19 53
    Ø12 C-KQ2H12-02S 1/4 19 - 34.5 28.5 22 58.3 46.1 42
    C-KQ2H12-03S 3/8 30 23.5 34
    C-KQ2H12-04S 1/2 22 - 22 51
    Ø16 C-KQ2H16-03S 3/8 24 25.7 39.5 33 25 81 (81) 61
    C-KQ2H16-04S 1/2 35.5 27.5 113 (96) 47

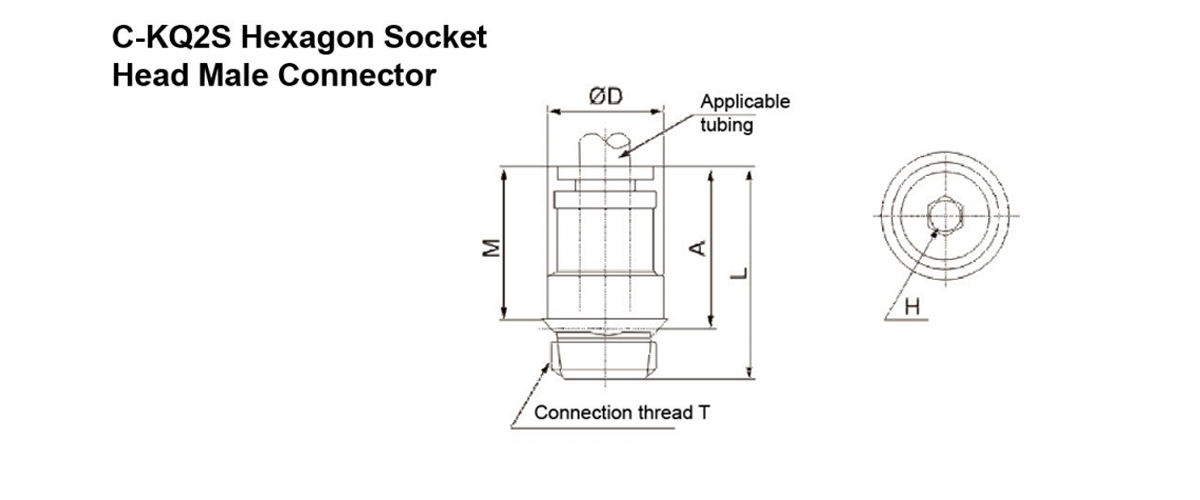

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L A M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

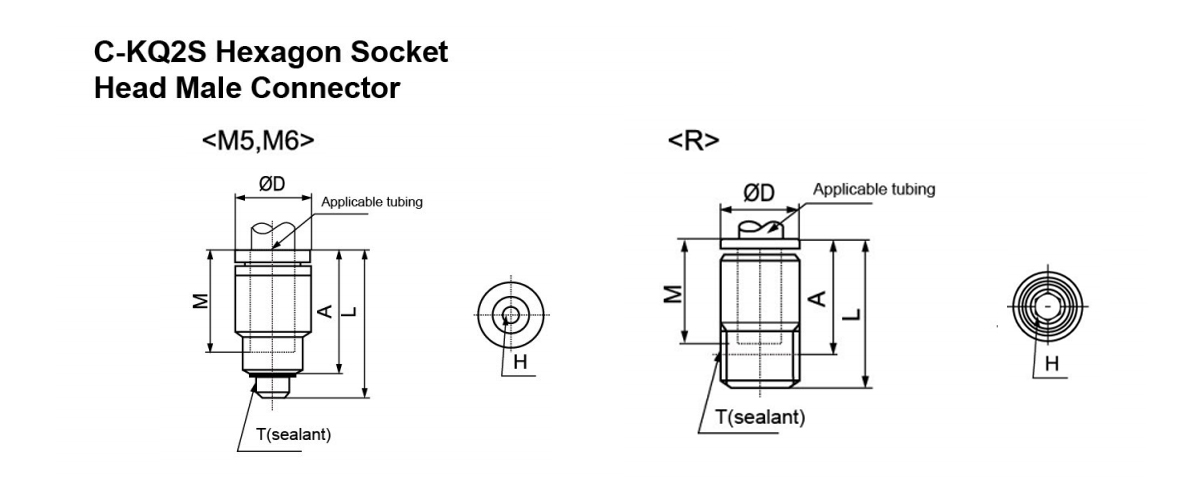

    Ø4 C-KQ2S04-01S 1/8 3 9.8 23 19 16 4.1 3.6 8
    Ø6 C-KQ2S06-01S 1/8 4 11.8 24 20 17 10.0 9.9 9
    C-KQ2S06-02S 1/4 13.8 24 18 10.7 10.0 15
    Ø8 C-KQ2S08-01S 1/8 5 14 28 24 18.5 17.2 16.2 12
    C-KQ2S08-02S 1/4 6 25.5 19.5 23.3 11
    C-KQ2S08-03S 3/8 17 27.5 21 24
    Ø10 C-KQ2S10-01S 1/8 5 17 30 26 21 17.2 16.2 18
    C-KQ2S10-02S 1/4 8 27.5 21.5 39.0 26.6 12
    C-KQ2S10-03S 3/8 21 19
    C-KQ2S10-04S 1/2 22 28 20 35
    Ø12 C-KQ2S12-02S 1/4 8 19 33.5 27.5 22 46.0 44.5 23
    C-KQ2S13-03S 3/8 10 29 22.5 60.0 18
    C-KQ2S12-04S 1/2 22 28 20 30
    Ø16 C-KQ2S16-03S 3/8 10 25.7 39 32.5 25 81 (81) 42
    C-KQ2S16-04S 1/2 12 35 27 113 (96) 34

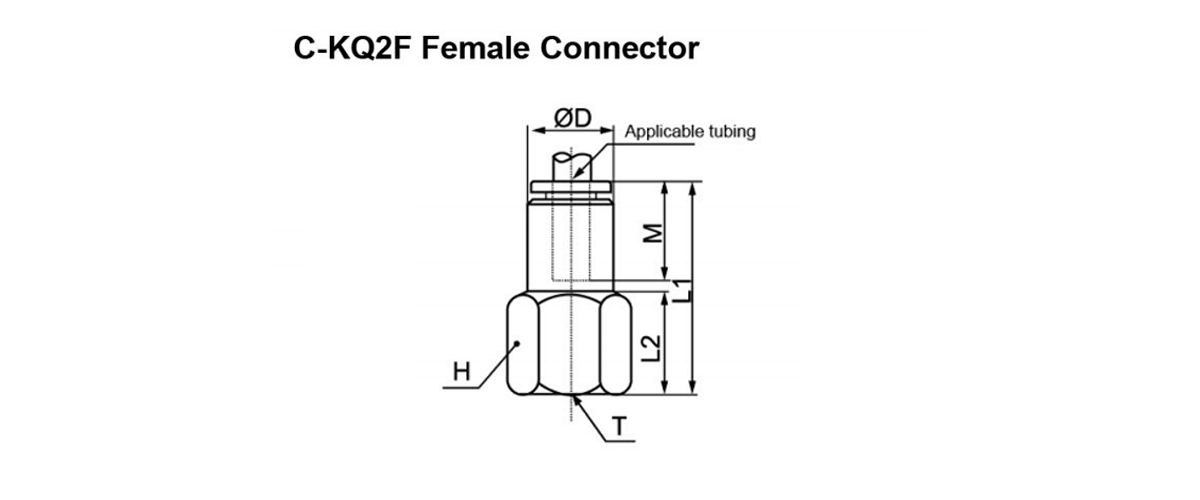

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L1 L2 M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2F04-01 1/8 14 10 27 11 16 5.6 4 15
    C-KQ2F04-02 1/4 17 31 14 23
    Ø6 C-KQ2F06-01 1/8 14 12 27.5 11 17 13.1 10.4 15
    C-KQ2F06-02 1/4 17 31 13 22
    C-KQ2F06-03 3/8 19 33.5 15 25
    Ø8 C-KQ2F08-01 1/8 14 14 29 11 18.5 26.1 18.0 17
    C-KQ2F08-02 1/4 17 32.5 13 24
    C-KQ2F08-03 3/8 19 33.5 14 24
    Ø10 C-KQ2F10-02 1/4 17 17 34.5 14 21 41.5 29.5 27
    C-KQ2F10-03 3/8 19 36.5 15 30
    Ø12 C-KQ2F12-02 1/4 19 19 35 14 22 58.3 46.1 36
    C-KQ2F12-03 3/8 37 31
    C-KQ2F12-04 1/2 24 41 18 52
    Ø16 C-KQ2F16-03 3/8 24 25.7 38 15 25 81 (81) 59
    C-KQ2F16-04 1/2 43 19 113 (96) 58

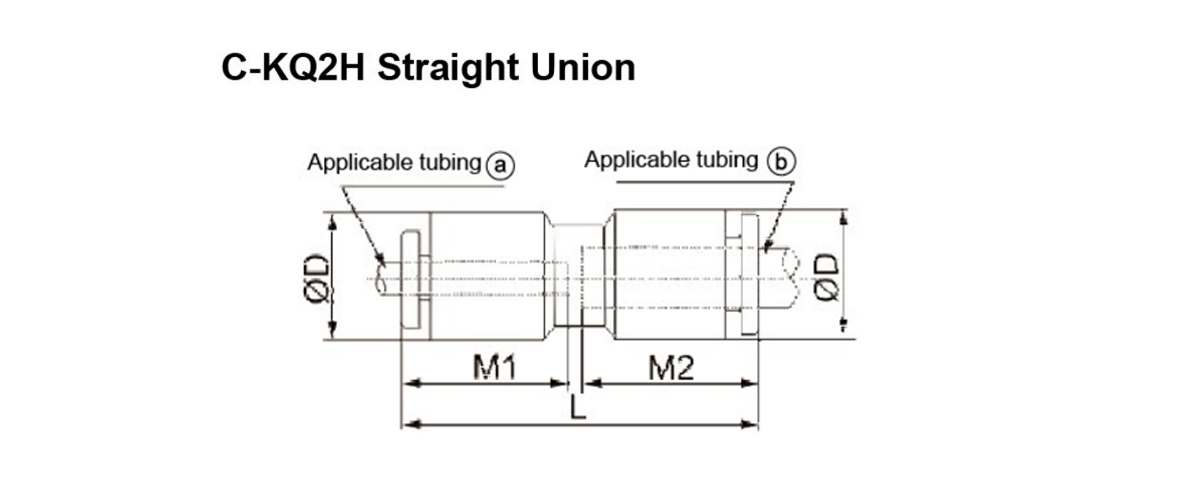

    Applicable Tubing O.D
    (mm)     		Model ØD L M Effective Area
    (mm²)
    Weight
    (g )
    ⓐ ⓑ 1 2 Nylon Urethane
    Ø4 C-KQ2H04-00 10.4 32.5 16 5.6 4 3
    Ø6 C-KQ2H06-00 12.8 34.5 17 13.1 10.4 4
    Ø8 C-KQ2H08-00 15.2 38.5 18.5 26.1 18.0 6
    Ø10 C-KQ2H10-00 18.5 42.5 21 41.5 29.5 11
    Ø12 C-KQ2H12-00 20.9 44.5 22 58.3 46.1 14
    Ø16 C-KQ2H16-00 26.5 51 25 113 (96) 24
    Ø4 Ø6 C-KQ2H04-06 12.8 34.5 16 17 5.6 5.6 5
    Ø6 Ø8 C-KQ2H06-08 15.2 38.5 17 18.5 13.1 10.4 6
    Ø8 Ø10 C-KQ2H08-10 18.5 42 18.5 21 26.1 18.0 11
    Ø10 Ø12 C-KQ2H10-12 20.9 44.5 21 22 41.5 29.5 14
    Ø12 Ø16 C-KQ2H12-16 26.5 56.5 22 25 58.3 46.1 47

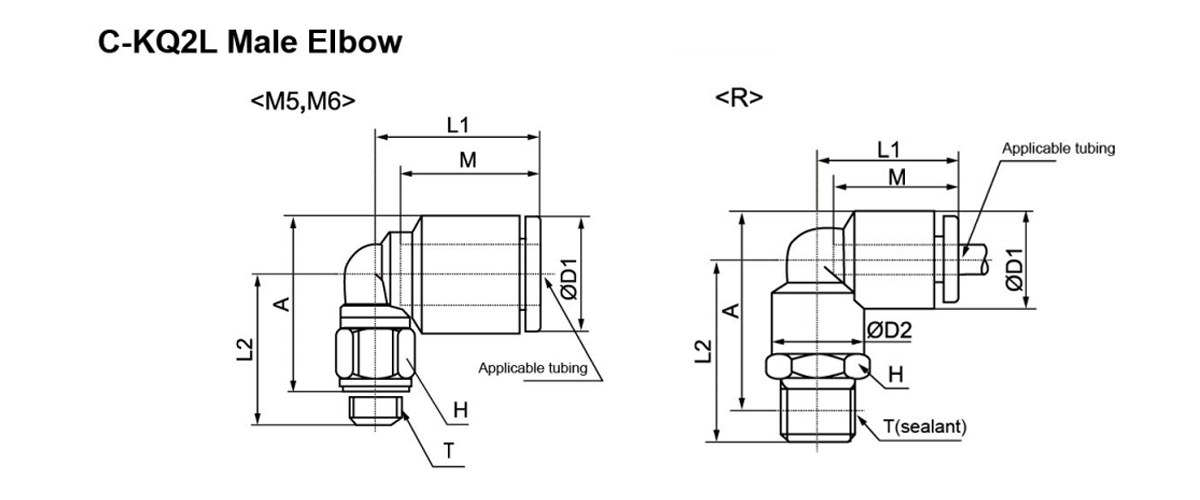

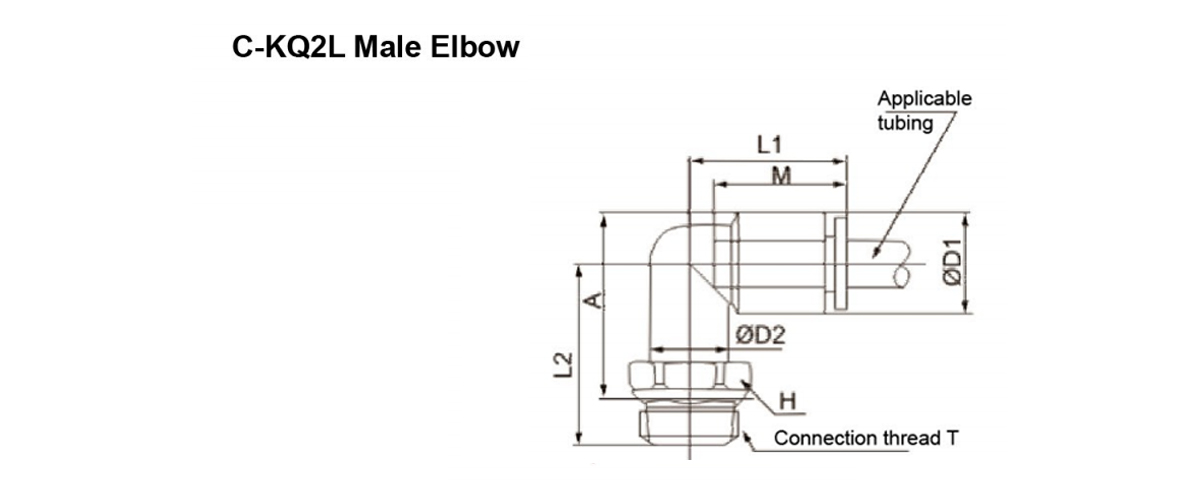

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M
    Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2L04-01S 1/8 10 10.4 10 18 22 23 16 4.2 4.2 10
    C-KQ2L04-02S 1/4 14 26 25 19
    Ø6 C-KQ2L06-01S 1/8 10 12.8 10 20 23 25.5 17 11.4 9.0 12
    C-KQ2L06-02S 1/4 14 27 27.5 22
    C-KQ2L06-03S 3/8 17 29 29 33
    Ø8 C-KQ2L08-01S 1/8 12 15.2 12 23 24.5 28 18.5 21.6 14.9 13
    C-KQ2L08-02S 1/4 14 28.5 30 21
    C-KQ2L08-03S 3/8 17 30.5 31.5 35
    Ø10 C-KQ2L10-01S 1/8 17 18.5 17 26.5 27 32 21 21.6 14.9 25
    C-KQ2L10-02S 1/4 30 33 35.2 25.0 26
    C-KQ2L10-03S 3/8 32 34.5 36
    C-KQ2L10-04S 1/2 22 36 37 63
    Ø12 C-KQ2L12-02S 1/4 17 20.9 17 28.5 31 35.5 22 50.2 39.7 28
    C-KQ2L12-03S 3/8 33 37 38
    C-KQ2L12-04S 1/2 22 37 39.5 65
    Ø16 C-KQ2L16-03S 3/8 22 26.5 20.9 34 38 44.5 25 71 (71) 101
    C-KQ2L16-04S 1/2 41 46 100 (84) 105

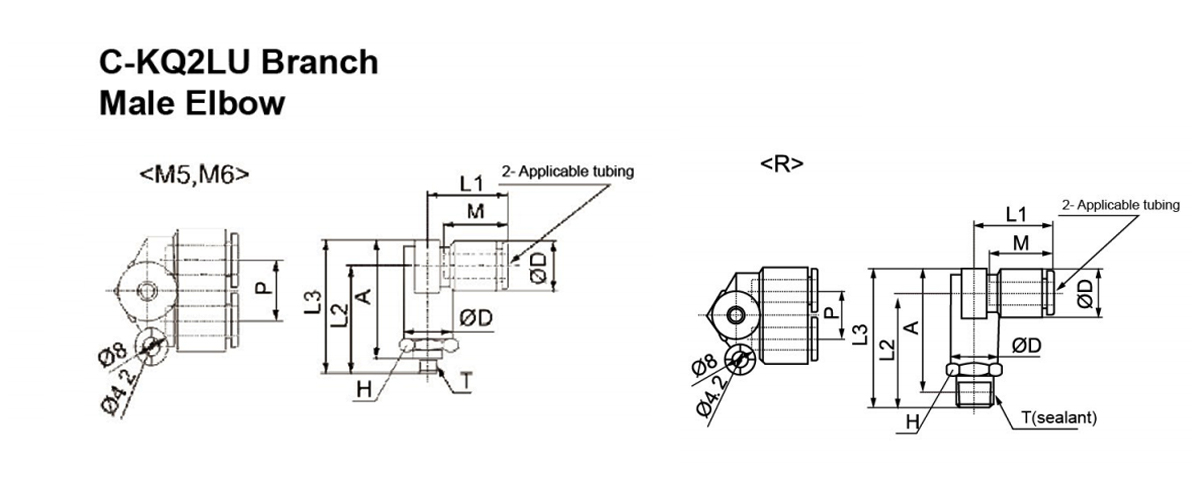

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L1 L2 L3 A M P Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2LU04-M5 M5×0.8 11 10.4 18.5 24 29.5 25.5 16 10.4 4.3 4.1 10
    C-KQ2LU04-M6 M6×1.0 24.5 30
    C-KQ2LU04-01S 1/8 26.5 32 27.5 6.0 4.1 12
    C-KQ2LU04-02S 1/4 14 30.5 36 30 21
    Ø6 C-KQ2LU06-M5 M5×0.8 13 12.8 21 26.5 33 29.5 17 12.8 4.3 4.3 13
    C-KQ2LU06-M6 M6×1.0 27 33.5
    C-KQ2LU06-01S 1/8 29.5 36 32 13.9 11.0 15
    C-KQ2LU06-02S 1/4 14 33 39.5 33.5 22
    C-KQ2LU06-03S 3/8 17 35 41.5 35 35
    Ø8 C-KQ2LU08-01S 1/8 17 15.2 24 34 41.5 38 18.5 15.2 26.3 18.2 27
    C-KQ2LU08-02S 1/4 37 44.5 38.5
    C-KQ2LU08-03S 3/8 38 45.5 39 35
    Ø10 C-KQ2LU10-02S 1/4 19 18.5 27 40 49.5 43.5 21 18.5 40.8 29.0 41
    C-KQ2LU10-03S 3/8 41 50.5 44 42
    C-KQ2LU10-04S 1/2 22 44.5 54 45.5 64
    Ø12 C-KQ2LU12-02S 1/4 22 20.9 29 42.5 53 47 22 20.9 57.2 45.2 57
    C-KQ2LU12-03S 3/8 43.5 54 47.5 58
    C-KQ2LU12-04S 1/2 46.5 57 49 65

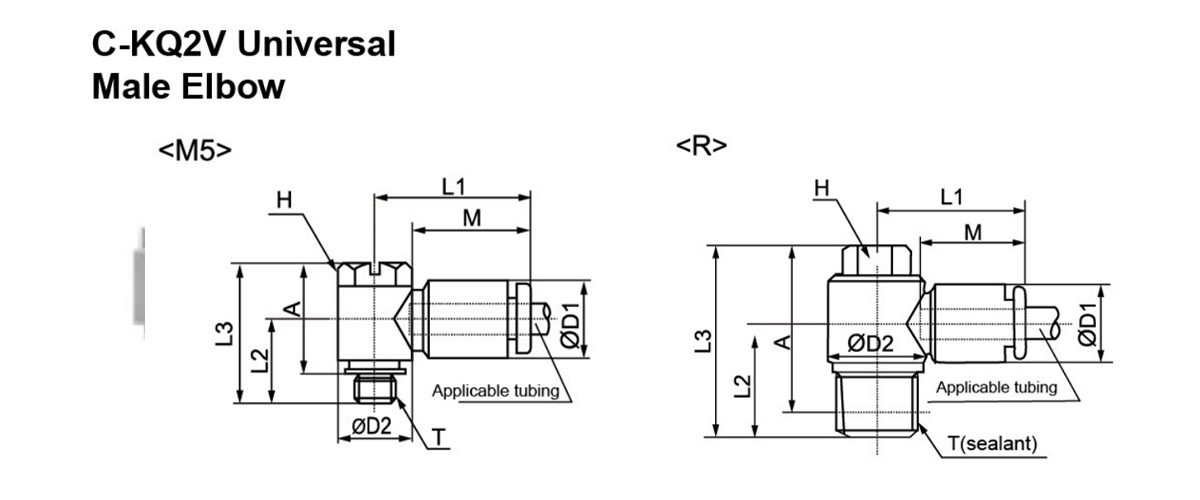

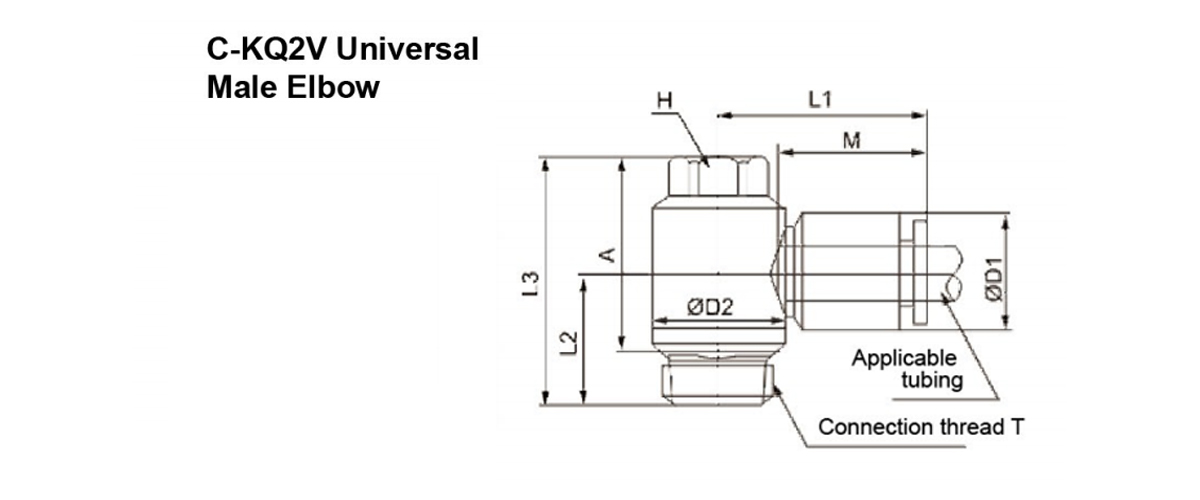

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M Effective Area
    (mm²)
    Weight
    ( g)
    Nylon Urethane
    Ø4 C-KQ2V04-M5 M5×0.8 8 10.4 9.8 20.5 11 18.5 15 16 2.9 2.9 6
    C-KQ2V04-01S 1/8 13.4 22 14.5 26.5 22.5 14
    Ø6 C-LQ2V06-M5 M5×0.8 8 12.8 9.8 23.5 12 18.5 15 17 3.8 3.8 7
    C-KQ2V06-01S 1/8 13.4 24 14.5 26.5 22.5 7.5 5.9 15
    C-KQ2V06-02S 1/4 10 15.4 23.5 18.5 31 25 26
    Ø8 C-KQ2V08-01S 1/8 12 15.2 17.6 28.5 15.5 28.5 24.5 18.5 16 11.2 24
    C-KQ2V08-02S 1/4 18.5 31.5 25.5 30
    C-KQ2V08-03S 3/8 14 20.6 27.5 20.5 36.5 30 20.5 14.3 47
    Ø10 C-KQ2V10-02S 1/4 14 18.5 20.6 31 195 35.5 29.5 21 27 20.3 40
    C-KQ2V10-03S 3/8 20.5 36.5 30 49
    Ø12 C-KQ2V12-03S 3/8 17 20.9 25.2 34 22 38.5 32 22 39 30.8 63
    C-KQ2V12-04S 1/2 25 41.5 33.5 80

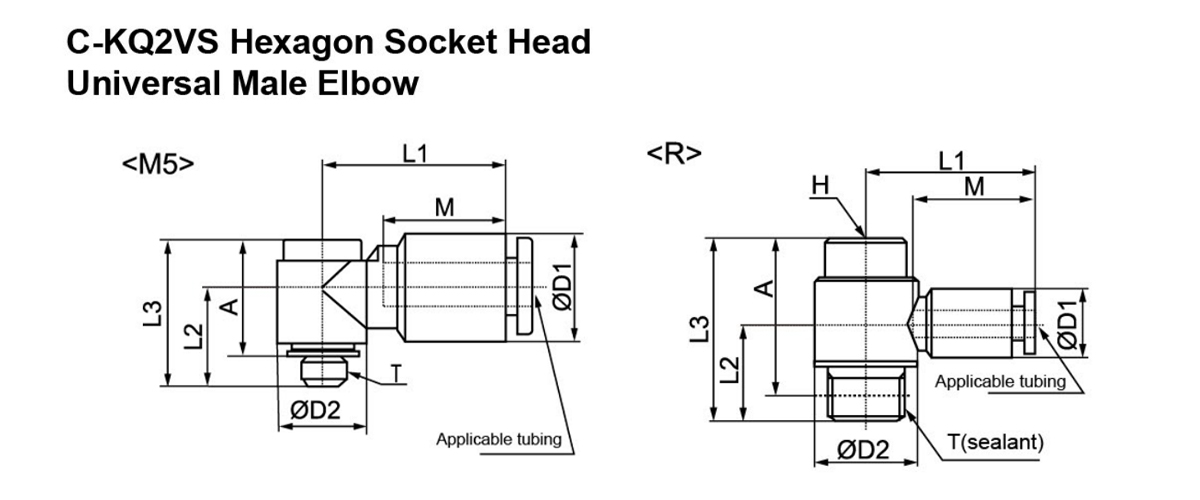

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T
    H
    Width
    across
    flats     		ØD1 ØD2 L1 L2 L3 A M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2VS04-M5 M5 4 10.4 9.8 20.5 10.5 18 15 16 2.9 2.9 6
    C-KQ2VS04-01S 1/8 6 13.4 22 14.5 26.5 22.5 14
    Ø6 C-KQ2VS06-M5 M5 4 12.8 9.8 23.5 12 18 15 17 3.8 3.8 7
    C-KQ2VS06-01S 1/8 6 13.4 24 14.5 26.5 22.5 7.5 5.9 15
    C-KQ2VS06-02S 1/4 15.3 23.5 18.5 27 21 22
    Ø8 C-KQ2VS08-01S 1/8 8 15.2 17.6 28.5 15.5 27 23 18.5 16 11.2 24
    C-KQ2VS08-02S 1/4 18.5 30 24 30
    C-KQ2VS08-03S 3/8 20.6 27.5 20.5 32.5 26 20.5 14.3 47
    Ø10 C-KQ2VS10-02S 1/4 8 18.5 20.6 31 19.5 31.5 25 21 27 20.3 32
    C-KQ2VS10-03S 3/8 20.5 32.5 26 39
    Ø12 C-KQ2VS12-03S 3/8 10 20.9 25.2 34 22 36 30 22 39 30.8 48
    C-KQ2VS12-04S 1/2 25 39 31 67

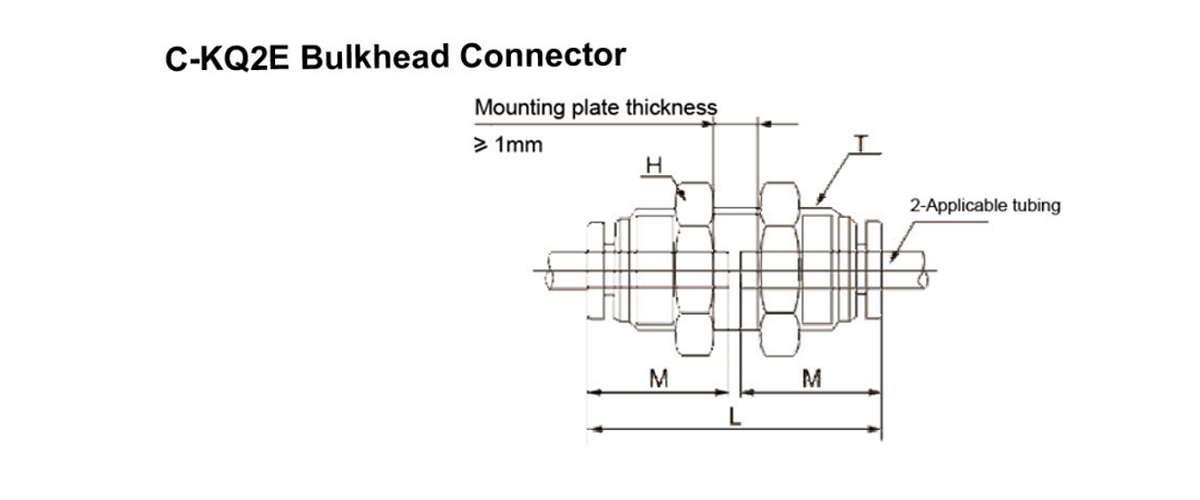

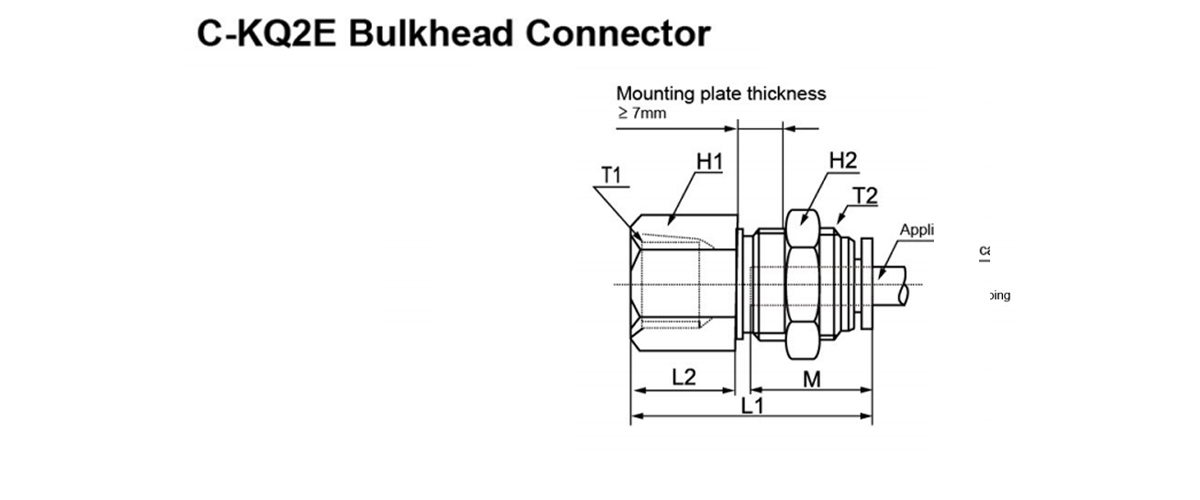

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T1 Mounting
    Thread
    T2     		H1
    Width
    Across
    Flats     		H2
    Width
    Across
    Flats     		L1 L2 Mount-
    ing Hole     		M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2E04-01 1/8 M12×1 14 14 27.5 11 13 16 5.6 4 16
    C-KQ2E04-02 1/4 17 31 15 35
    Ø6 C-KQ2E06-01 1/8 M14×1 17 17 28 11 15 17 13.1 10.4 25
    C-KQ2E06-02 1/4 31.5 15 40
    C-KQ2E06-03 3/8 19 33.5 17 29
    Ø8 C-KQ2E08-01 1/8 M16×1 17 19 27.5 7.5 17 18.5 26.1 18.0 28
    C-KQ2E08-02 1/4 33 13 27
    C-KQ2E10-02 3/8 19 35 15 48
    Ø10 C-KQ2E10-02 1/4 M20×1 22 24 34.5 12.5 21 21 41.5 29.5 53
    C-KQ2E10-03 3/8 22 36.5 15 67
    Ø12 C-KQ2E12-03 3/8 M22×1 24 27 37 14 23 22 58.3 46.1 92
    C-KQ2E12-04 1/2 41 18 59
    Ø16 C-KQ2E16-03 3/8 M28×1.5 30 32 40 14 29 25 96 (96) 127
    C-KQ2E16-04 1/2 44 18 113 132

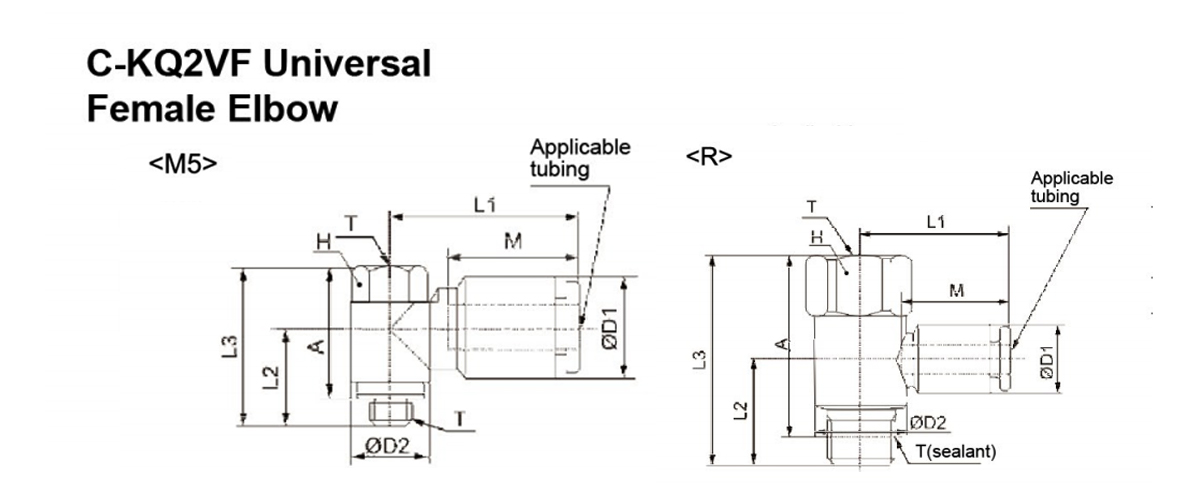

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M Weight
    (g)
    Ø4 C-KQ2VF04-M5 M5×0.8 8 10.4 9.8 20.5 11 20 16 16 6
    C-KQ2VF04-01S 1/8 14 13.4 22 15.5 29.5 25.5 19
    Ø6 C-KQ2VF-06-M5 M5×0.8 8 12.8 9.8 23.5 12.5 20 16 17 7
    C-KQ2VF06-01S 1/8 14 13.4 24.5 15.5 29.5 25.5 19
    C-KQ2VF06-02S 1/4 17 17.6 25 20 38.5 32.5 36
    Ø8 C-KQ2VF08-01S 1/8 17 15.2 17.6 28.5 17 31 27 18.5 29
    C-KQ2VF08-02S 1/4 20 38.5 32.5 37
    C-KQ2VF08-03S 3/8 22 25.2 29.5 25.5 45.5 39 66
    Ø10 C-KQ2VF10-02S 1/4 19 18.5 20.6 31.5 22 41 35 21 48
    C-KQ2VF10-03S 3/8 22 25.2 24.5 45.5 39 68
    Ø12 C-KQ2VF12-03S 3/8 22 20.9 25.2 34 24.5 45.5 39 22 70

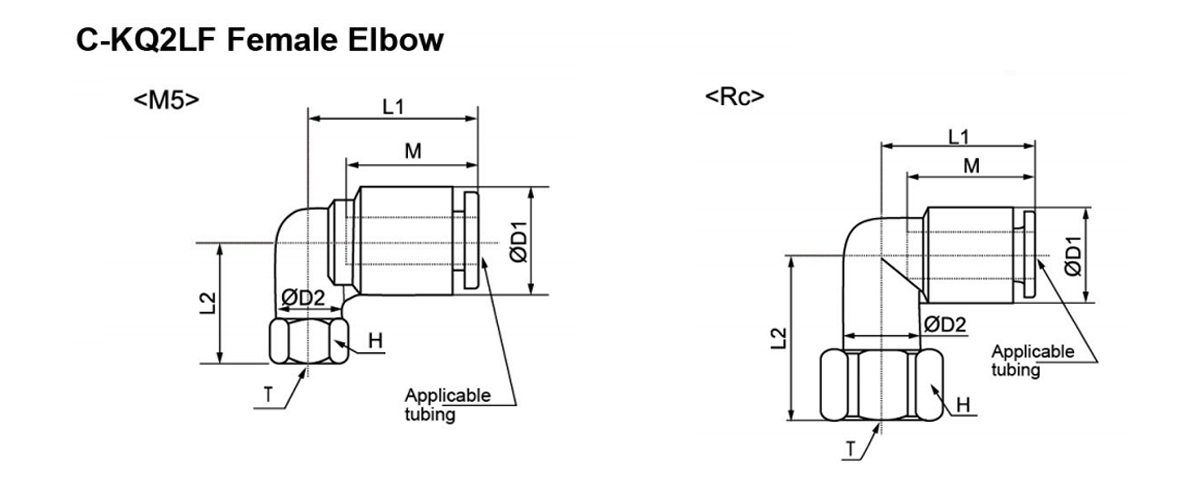

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2LF04-M5 M5×0.8 8 10.4 8 18.5 14.5 16 3.5 3.5 5
    C-KQ2LF04-M6 M6×1.0 15.5
    C-KQ2LF04-01 1/8 14 10 21 4.2 4.2 13
    C-KQ2LF04-02 1/4 17 24.5 20
    Ø6 C-KQ2LF06-M5 M5×0.8 8 12.8 8 20.5 15 17 3.5 3.5 5
    C-KQ2LF06-M6 M6×1.0 16 6
    C-KQ2LF06-01 1/8 14 10 22 11.4 9.0 13
    C-KQ2LF06-02 1/4 17 25.5 20
    C-KQ2LF06-03 3/8 19 26
    Ø8 C-KQ2LF08-01 1/8 14 15.2 12 23.5 23 18.5 21.6 14.9 16
    C-KQ2LF08-02 1/4 17 26.5 22
    C-KQ2LF08-03 3/8 19 27 23
    Ø10 C-KQ2LF10-02 1/4 17 18.5 17 26.5 28 21 21.6 14.9 27
    C-KQ2LF10-03 3/8 19 28.5 35.2 25.0
    C-KQ2LF10-04 1/2 24 32.5 46
    Ø12 C-KQ2LF12-02 1/4 17 20.9 17 28.5 29.5 22 50.2 39.7 29
    C-KQ2LF12-03 3/8 19 30
    C-KQ2LF12-04 1/2 24 34 48

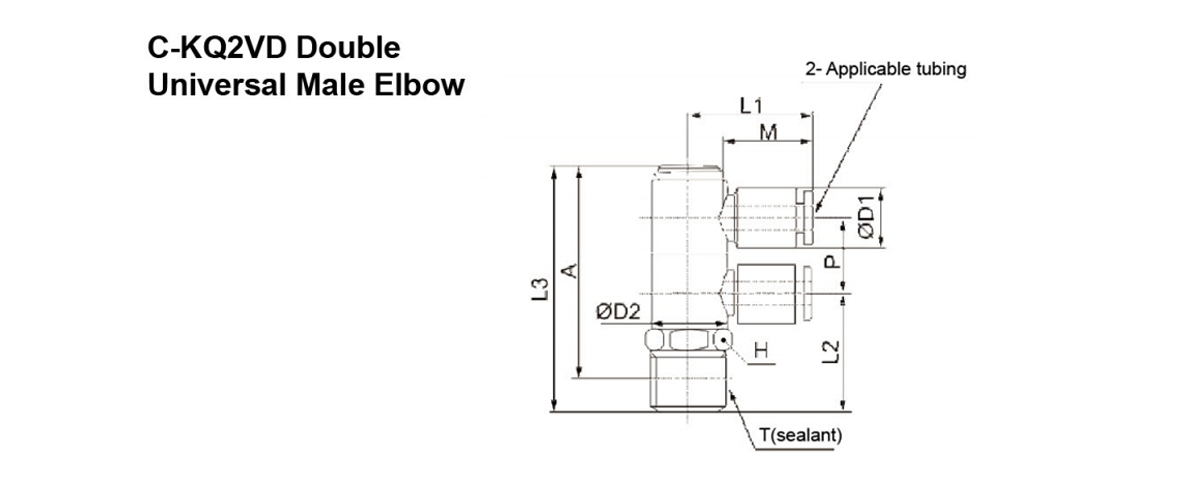

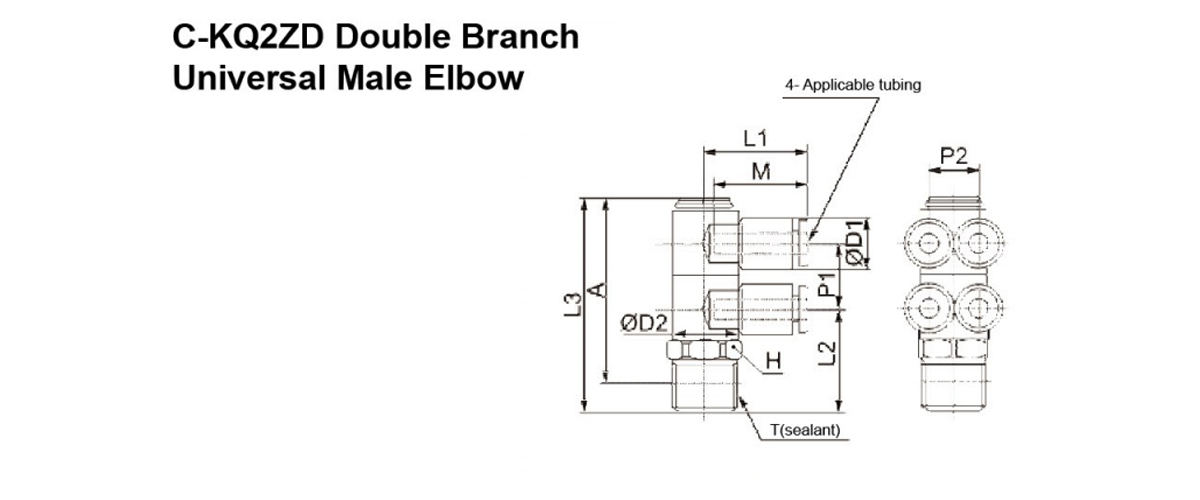

    Applicable Tubing O.D
    (mm)     		Model
    Connection Thread T     		H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P
    Weight
    (g)
    Ø4 C-KQ2VD04-01S 1/8 14 10.4 13.4 22 18.5 41 37 16 13.4 23
    C-KQ2VD04-02S 1/4 21.5 44 38 29
    C-KQ2VD04-03S 3/8 17 23.5 46 40 42
    Ø6 C-KQ2VD06-01S 1/8 14 12.8 13.4 24.5 18.5 41 37 17 13.4 24
    C-KQ2VD06-02S 1/4 21.5 44 38 30
    C-KQ2VD06-03S 3/8 17 23.5 46 40 42
    Ø8 C-KQ2VD08-01S 1/8 19 15.2 17.6 28.5 21 48 44 18.5 15.9 53
    C-KQ2VD08-02S 1/4 24 51 45 51
    C-KQ2VD08-03S 3/8 25 52 45.5 60
    C-KQ2VD08-04S 1/2 21 28.5 55.5 47.5 82
    Ø10 C-KQ2VD10-02S 1/4 21 18.5 20.6 31.5 26.5 58 52 21 19.2 71
    C-KQ2VD10-03S 3/8 27.5 59 53 74
    C-KQ2VD10-04S 1/2 30.5 62 54 91
    Ø12 C-KQ2VD12-02S 1/4 26 20.9 25.2 34 28.5 64.5 58.5 21 21.6 118
    C-KQ2VD12-03S 3/8 29.5 65.5 59 113
    C-KQ2VD12-04S 1/2 32.5 68.5 60 125

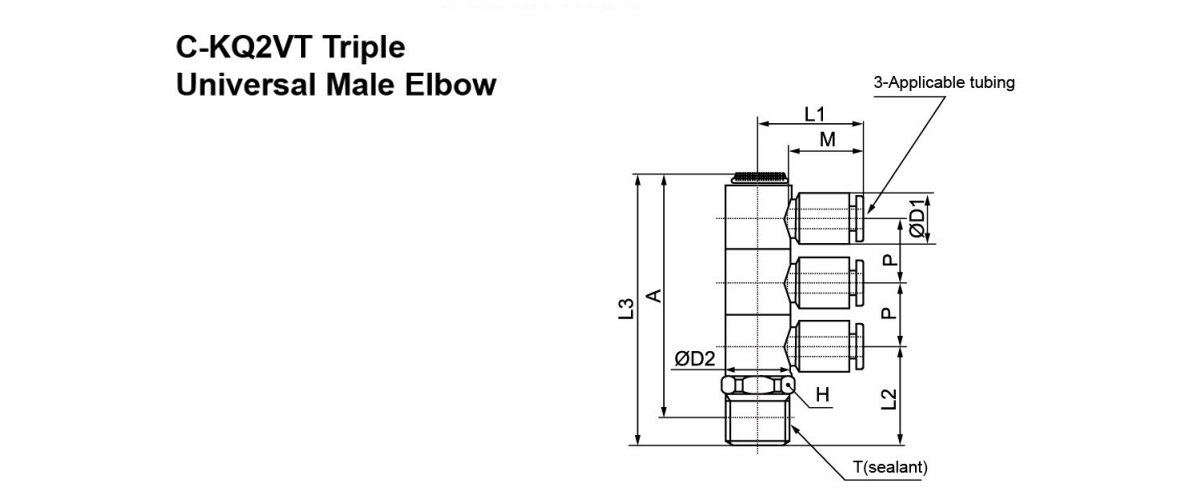

    Applicable Tubing O.D
    (mm)     		Model Connection Thread
    T     		H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P Weight
    (g)
    Ø4 C-KQ2VT04-01S 1/8 14 10.4 13.4 22 18.5 54.5 50.5 16 13.4 29
    C-KQ2VT04-02S 1/4 21.5 57.5 51.5 34
    C-KQ2VT04-03S 3/8 17 23.5 59.5 53.5 48
    Ø6 C-KQ2VT06-01S 1/8 14 12.8 13.4 24.5 18.5 54.5 50.5 17 13.4 31
    C-KQ2VT06-02S 1/4 21.5 57.5 51.5 37
    C-KQ2VT06-03S 3/8 17 23.5 59.5 53.5 50
    Ø8 C-KQ2VT08-01S 1/8 19 15.2 17.6 28.5 21 64 60 18.5 15.9 71
    C-KQ2VT08-02S 1/4 24 67 61 66
    C-KQ2VT08-03S 3/8 25 68 61.5 75
    C-KQ2VT08-04S 1/2 21 28.5 71.5 63.5 96
    Ø10 C-KQ2VT10-02S 1/4 21 18.5 20.6 31.5 26.5 77.5 71.5 21 19.2 94
    C-KQ2VT10-03S 3/8 27.5 78.5 72
    C-KQ2VT10-04S 1/2 30.5 81.5 73.5 111
    Ø12 C-KQ2VT12-02S 1/4 26 20.9 25.2 34 28.5 86 80 21 21.6 153
    C-KQ2VT12-03S 3/8 29.5 87 80.5 143
    C-KQ2VT12-04S 1/2 32.5 90 82 154

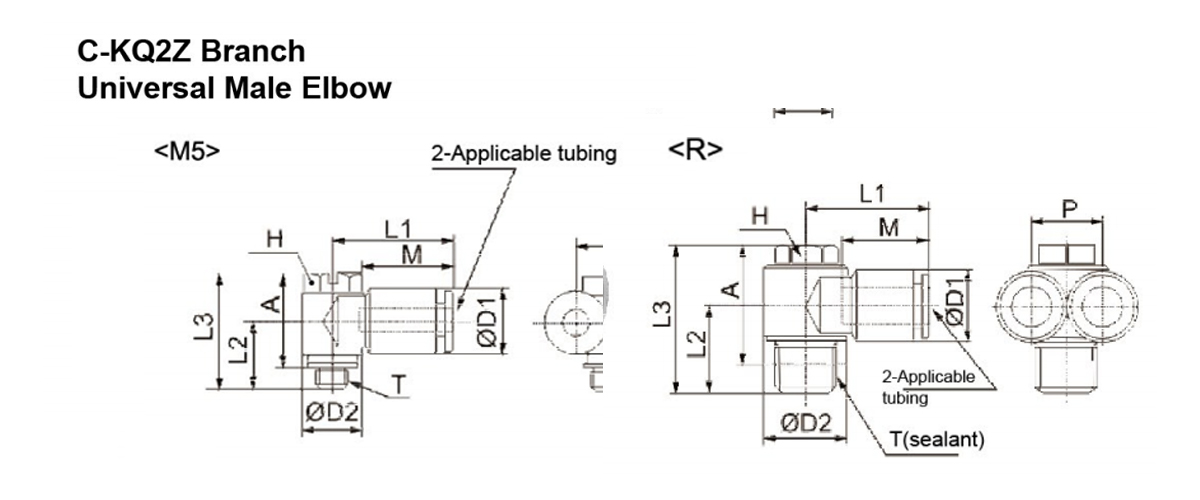

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2Z04-M5 M5×0.8 8 10.4 9.8 19.5 11 18.5 15 16 10.4 3.4 3.4 8
    C-KQ2Z04-01S 1/8 13.4 21 14.5 26.5 22.5 4.7 4.7 16
    Ø6 C-ZQ2Z06-01S 1/8 8 12.8 13.4 22 14.5 26.5 22.5 17 12.8 10.8 8.6 17
    C-ZQ2Z06-02S 1/4 14 20.6 25.5 19.5 35.5 29.5 39
    C-ZQ2Z06-03S 3/8 20.5 36.5 30 47
    Ø8 C-KQ2Z08-01S 1/8 12 15.2 17.6 26 15.5 28.5 24.5 18.5 15.2 20.5 14.2 27
    C-KQ2Z08-02S 1/4 18.5 31.5 25.5 33
    C-KQ2Z08-03S 3/8 14 20.6 27 20.5 36.5 30 49
    Ø10 C-KQ2Z10-02S 1/4 14 18.5 20.6 29 19.5 35.5 29.5 21 18.5 31.8 22.6 46
    C-KQ2Z10-03S 3/8 20.5 36.5 30 54
    Ø12 C-KQ2Z12-02S 3/8 17 20.9 25.2 32.5 22 39 32.5 22 20.9 44.6 35.3 71
    C-KQ2Z12-04S 1/2 25 42 34 88

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P Weight
    (g)

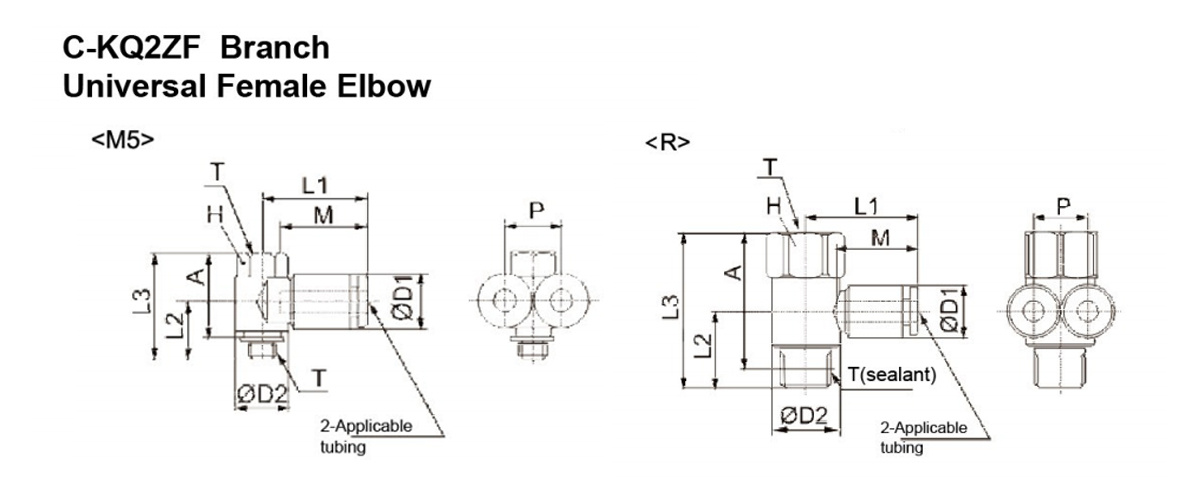

    Ø4 C-KQ2ZF04-M5 M5×0.8 8 10.4 9.8 19.5 11 20 16.5 16 10.4 8
    C-KQ2ZF04-01S 1/8 14 13.4 21 15.5 29.5 25.5 21
    Ø6 C-KQ2ZF06-01S 1/8 14 12.8 13.4 22 15.5 29.5 25.5 17 12.8 21
    C-KQ2ZF06-02S 1/4 19 20.6 25.5 22 41 35 47
    Ø8 C-KQ2ZF08-01S 1/8 17 15.2 17.6 25.5 17 31 27 18.5 15.2 32
    C-KQ2ZF08-02S 1/4 19 20.6 27 22 41 35 49
    Ø10 C-KQ2ZF10-02S 1/4 19 18.5 20.6 29 22 41 35 21 18.5 54
    C-KQ2ZF10-03S 3/8 22 25.2 31.5 24.5 45.5 39 74
    Ø12 C-KQ2ZF12-03S 3/8 22 20.9 25.2 32.5 24.5 45.5 39 22 20.9 77


    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P1 P2 Weight
    (g)
    Ø4 C-KQ2ZD04-01S 1/8 14 10.4 13.4 21 18.5 41 37 16 13.4 10.4 34
    C-KQ2ZD04-02S 1/4 21.5 44 38 40
    C-KQ2ZD04-03S 3/8 17 23.5 46 40 53
    Ø6 C-KQ2ZD06-01S 1/8 14 12.8 13.4 22 18.5 41 37 17 13.4 12.8 38
    C-KQ2ZD06-02S 1/4 21.5 44 38 43
    C-KQ2ZD06-03S 3/8 17 23.5 46 40 57
    Ø8 C-KQ2ZD08-01S 1/8 19 15.2 17.6 26 21 48 44 18.5 15.9 15.2 76
    C-KQ2ZD08-02S 1/4 24 51 45 72
    C-KQ2ZD08-03S 3/8 25 52 45.5 81
    C-KQ2ZD08-04S 1/2 21 28.5 55.5 47.5 102
    Ø10 C-KQ2ZD10-02S 1/4 21 18.5 20.6 29 26.5 58 52 21 19.2 18.5 111
    C-KQ2ZD10-03S 3/8 27.5 59 53
    C-KQ2ZD10-04S 1/2 30.5 62 54 128
    Ø12 C-KQ2ZD12-02S 1/4 26 20.9 25.2 32 28.5 64.5 58.5 22 21.6 20.9 178
    C-KQ2ZD12-03S 3/8 29.5 65.5 59 167
    C-KQ2ZD¹2-04S 1/2 32.5 68.5 60 179


    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P1 P2
    Weight
    (g)

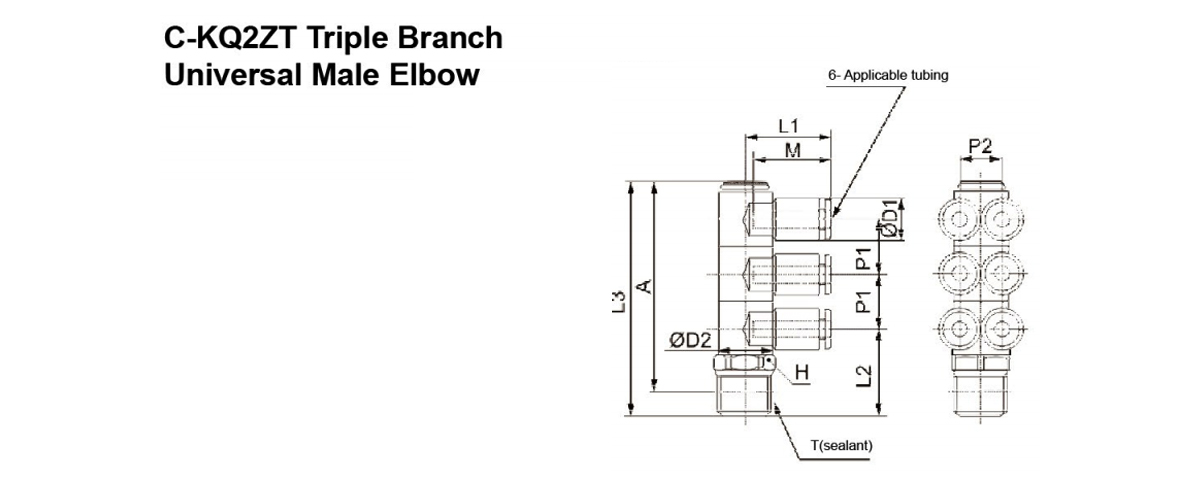

    Ø4 C-KQ2ZT04-01S 1/8 14 10.4 13.4 21 18.5 54.5 50.5 16 13.4 10.4 25
    C-KQ2ZT04-02S 1/4 21.5 57.5 51.5 31
    C-KQ2ZT04-03S 3/8 17 23.5 59.5 53.5 44
    Ø6 C-KQ2ZT06-01S 1/8 14 12.8 13.4 22 18.5 54.5 50.5 17 13.4 12.8 27
    C-KQ2ZT06-02S 1/4 21.5 57.5 51.5 33
    C-KQ2ZT06-03S 3/8 17 23.5 59.5 53.5 46
    Ø8 C-KQ2ZT08-01S 1/8 19 15.2 17.6 26 21 64 60 18.5 15.9 15.2 56
    C-KQ2ZT08-02S 1/4 24 67 61 54
    C-KQ2ZT08-03S 3/8 25 68 61.5 62
    C-KQ2ZT08-04S 1/2 21 28.5 71.5 63.5 85
    Ø10 C-KQ2ZT10-02S 1/4 21 18.5 20.6 29 26.5 77.5 71.5 21 19.2 18.5 83
    C-KQ2ZT10-03S 3/8 27.5 78.5 72 85
    C-KQ2ZT10-04S 1/2 30.5 81.5 73.5 102
    Ø12 C-KQ2ZT12-02S 1/4 26 20.9 25.2 32 28.5 86 80 22 21.6 20.9 134
    C-KQ2ZT12-03S 3/8 29.5 87 80.5 130
    C-KQ2ZT12-04S 1/2 32.5 90 82 141

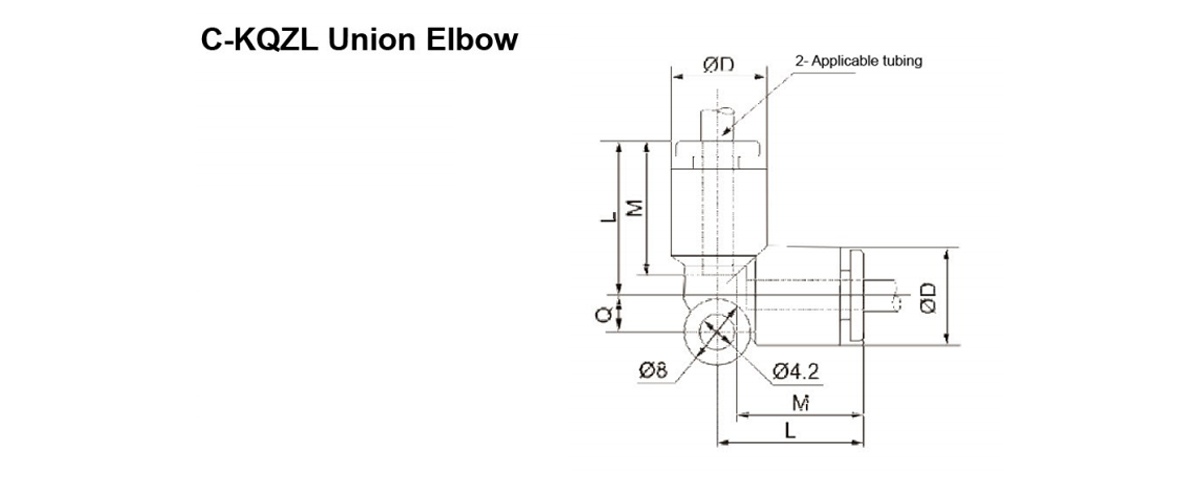

    Applicable Tubing O.D
    (mm)     		Model ØD L Q M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2L04-00 10.4 18 4.5 16 4.2 4.2 6
    Ø6 C-KQ2L06-00 12.8 20 5.3 17 11.4 9.0 6
    Ø8 C-KQ2L08-00 15.2 23 6 18.5 21.6 14.9 10
    Ø10 C-KQ2L10-00 18.5 26.5 6.8 21 35.2 25.0 17
    Ø12 C-KQ2L12-00 20.9 28.5 7.5 22 50.2 39.7 21
    Ø16 C-KQ2L16-00 26.5 34 10 25 100 (84) 29

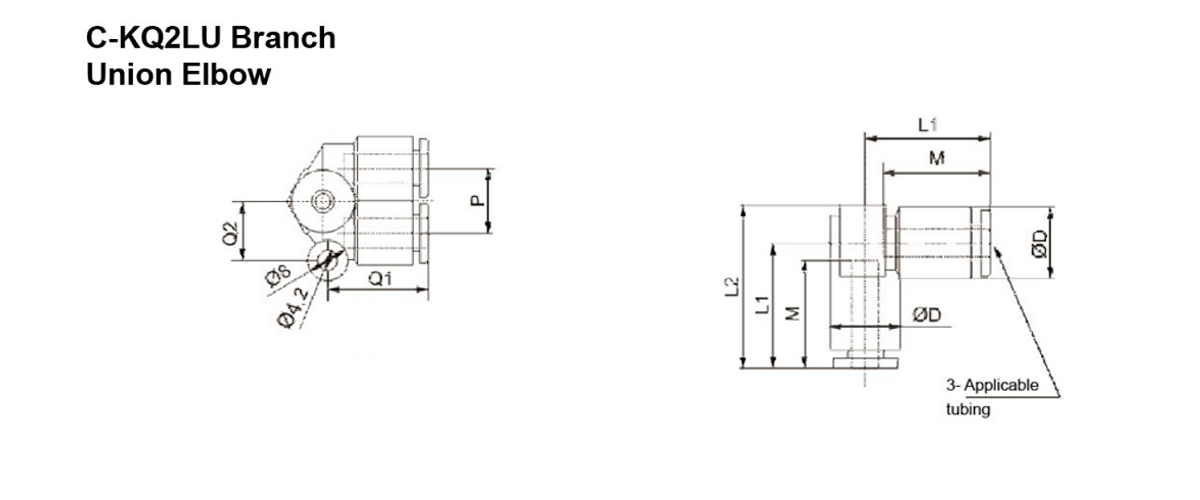

    Applicable Tubing O.D
    (mm)     		Model ØD L1 L2 Q1 Q2 M p Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2LU04-00 10.4 18.5 24 18.5 10 16 10.4 6.0 4.1 6
    Ø6 C-KQ2LU06-00 12.8 21 27.5 20.5 12 17 12.8 13.9 11.0 8
    Ø8 C-KQ2LU08-00 15.2 24 32 24.5 14 18.5 15.2 26.3 18.2 15
    Ø10 C-KQ2LU10-00 18.5 27 36.5 28 16 21 18.5 40.8 29.0 25
    Ø12 C-KQ2LU12-00 20.9 29 40 30 18 22 20.9 57.2 45.2 32

    Applicable Tubing O.D
    (mm)     		Applicable Fitting Size
    od     		Model ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane

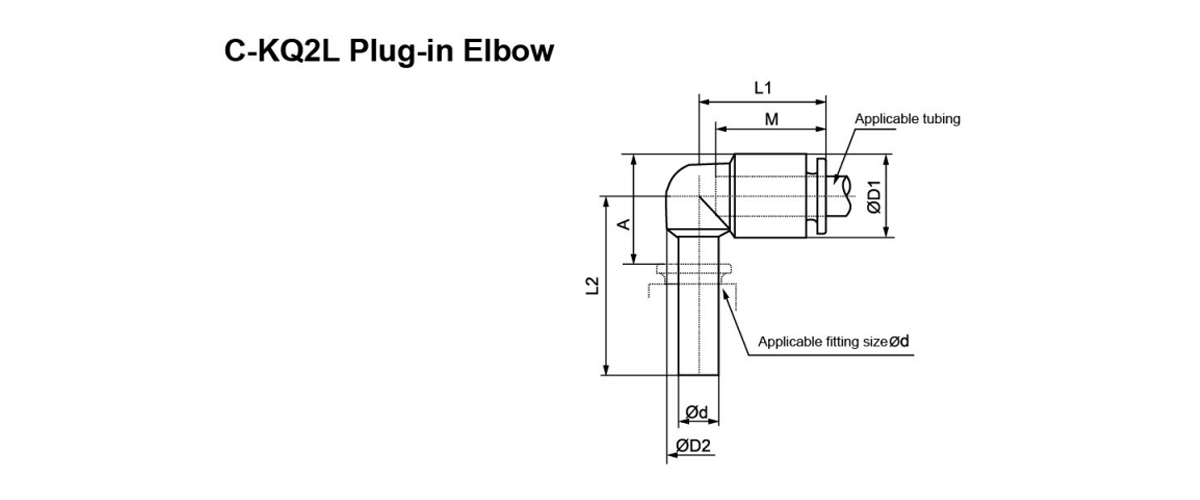

    Ø4 Ø4 C-KQ2L04-99 10.4 8 18 25 14.5 16 4.2 4.2 3
    Ø6 Ø6 C-KQ2L06-99 12.8 10 20 27.5 17 17 11.4 9.0 3
    Ø8 Ø8 C-KQ2L08-99 15.2 12 22.5 31.5 21 18.5 21.6 14.9 5
    Ø10 Ø10 C-KQ2L10-99 18.5 14 25.5 35.5 23.5 21 35.2 25.0 9
    Ø12 Ø12 C-KQ2L12-99 20.9 16 27 37.5 26 22 50.2 39.7 10
    Ø16 Ø16 C-KQ2L16-99 26.5 20.9 34 53 41 25 100 (84) 42

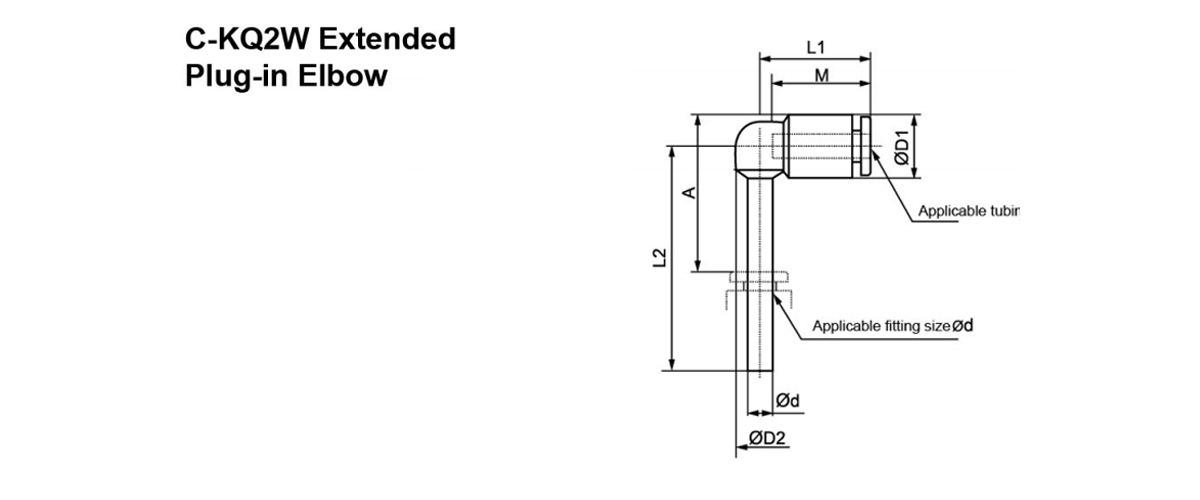

    Applicable
    Tubing O.D
    (mm)
    Applicable Fitting Size
    od     		Model ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 Ø4 C-KQ2W04-99 10.4 10 18.1 32.1 21.5 16 4.2 4.2 13
    Ø6 Ø6 C-KQ2W06-99 12.8 10 20 34.5 24 17 11.4 9.0 14
    Ø8 Ø8 C-KQ2W08-99 15.2 12 23.1 39.5 29 18.5 21.6 14.9 16
    Ø10 Ø10 C-KQ2W10-99 18.5 17 26.6 45.5 33.5 21 35.2 25.0 19
    Ø12 Ø12 C-KQ2W12-99 20.9 17 28.6 47.5 36 22 50.2 39.7 23

    Applicable Tubing O.D
    (mm)     		Applicable Fitting Size
    od     		Model ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

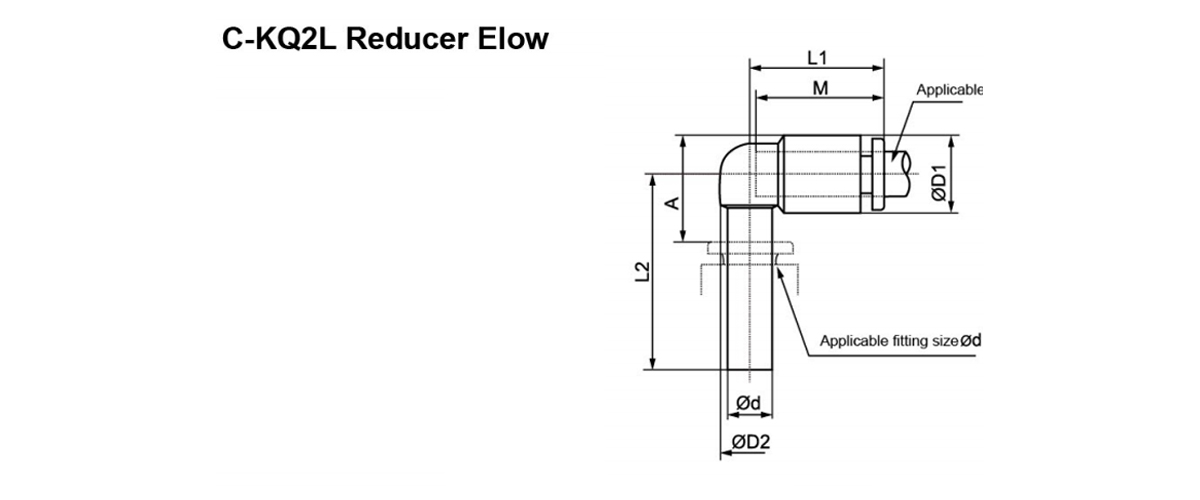

    Ø4 Ø6 C-KQ2L04-06(99) 10.4 8 18 33 21.5 16 4.2 4.2 13
    Ø8 C-KQ2L04-08(99) 10 42 29 21
    Ø6 Ø8 C-KQ2L06-08(99) 12.8 10 19.5 37.5 25 17 11.4 9.0 22
    Ø10 C-KQ2L06-10(99) 20 45.5 31 29
    Ø8 Ø10 C-KQ2L08-10(99) 15.2 12 22.5 41.5 28.5 18.5 21.6 14.9 30
    Ø12 C-KQ2L08-12(99) 23 48.5 34 37
    Ø10 Ø12 C-KQ2L10-12(99) 18.5 17 26.5 52 39.5 21 35.2 25.0 39
    Ø12 Ø16 C-KQ2L12-16(99) 20.9 17 28.5 59.5 44.5 22 50.2 39.7 63

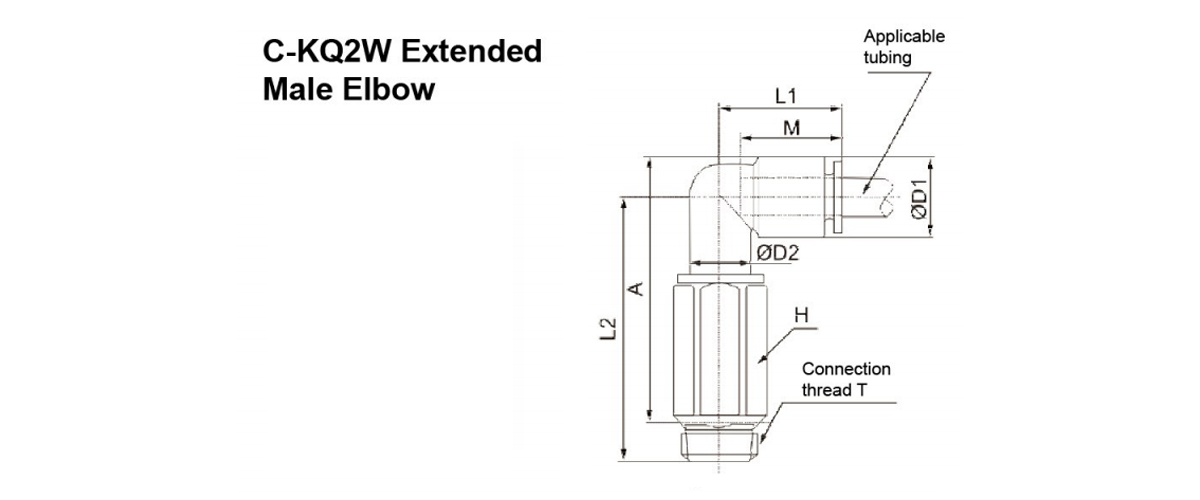

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

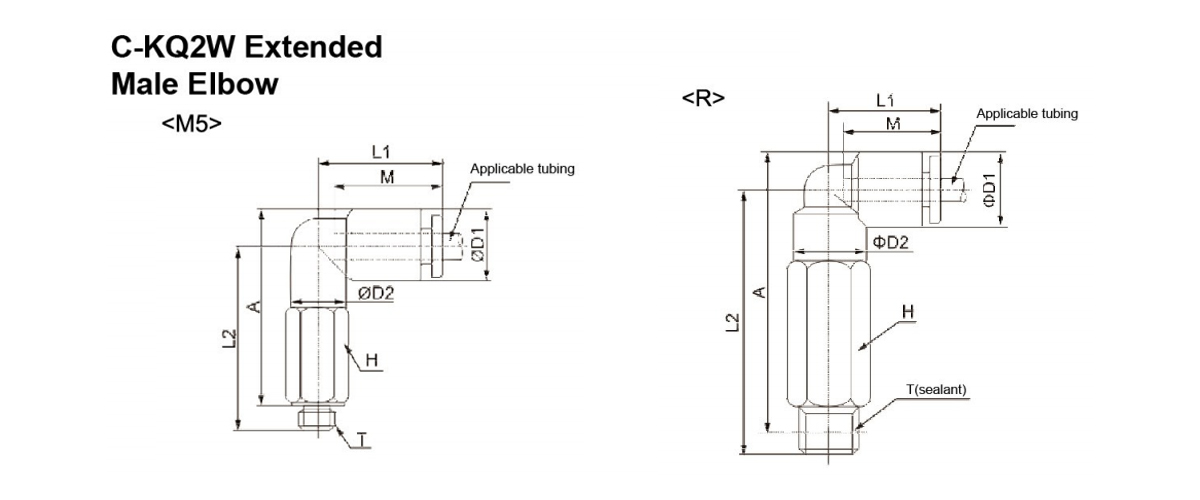

    Ø4 C-KQ2W04-01S 18 10 10.4 10 18 37.5 38.5 16 4.0 4.0 23
    C-KQ2W04-02S 1/4 14 43.5 42.5 38
    Ø6 C-KQ2W06-01S 1/8 10 12.8 10 20 40 42.5 17 10.9 8.6 26
    C-KQ2W06-02S 1/4 14 46 46.5 41
    C-KQ2W06-03S 3/8 17 48 48 67
    Ø8 C-KQ2W08-01S 18 12 15.2 12 23 43.5 47 18.5 20.5 14.2 30
    C-KQ2W08-02S 1/4 14 49.5 51 47
    C-KQ2W08-03S 3/8 17 51.5 52.5 74
    Ø10 C-KQ2W10-02S 1/4 17 18.5 17 26.5 58.5 59.5 21 33.5 23.8 66
    C-KQ2W10-03S 8 58.5 61 76
    C-KQ2W10-04S 1/2 22 65 66 145
    Ø12 C-KQ2W12-02S 1/4 17 20.9 17 28.5 57.5 62 22 47.7 37.7 68
    C-KQ2W12-03S 3/8 59.5 63.5 78
    C-KQ2W12-04S 1/2 22 66 68.5 147
    Ø16 C-KQ2W16-03S 3/8 22 26.5 20.9 34 69.5 76 25 71 (71) 101
    C-KQ2W16-04S 72 75 80 100 (84) 105

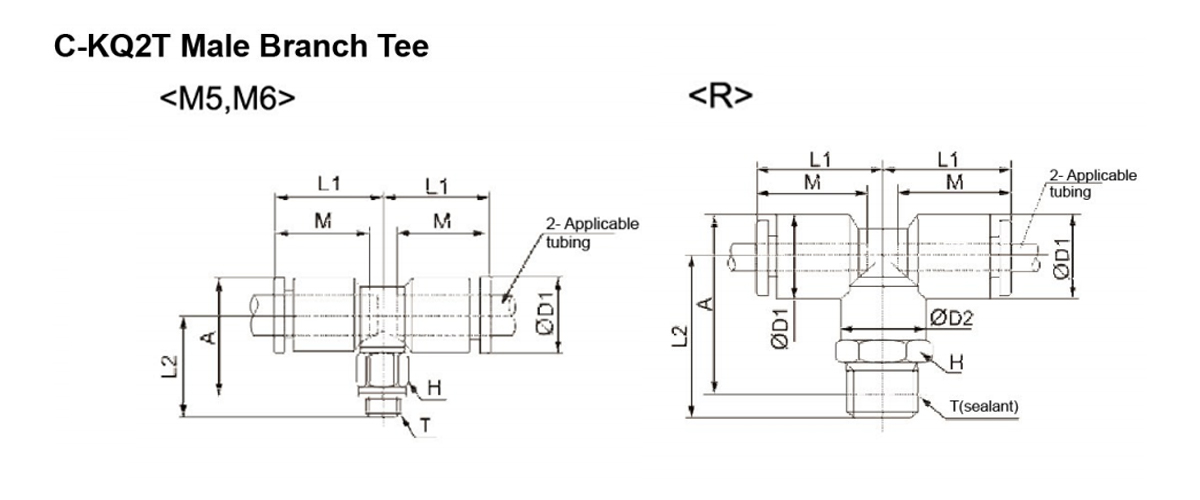

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

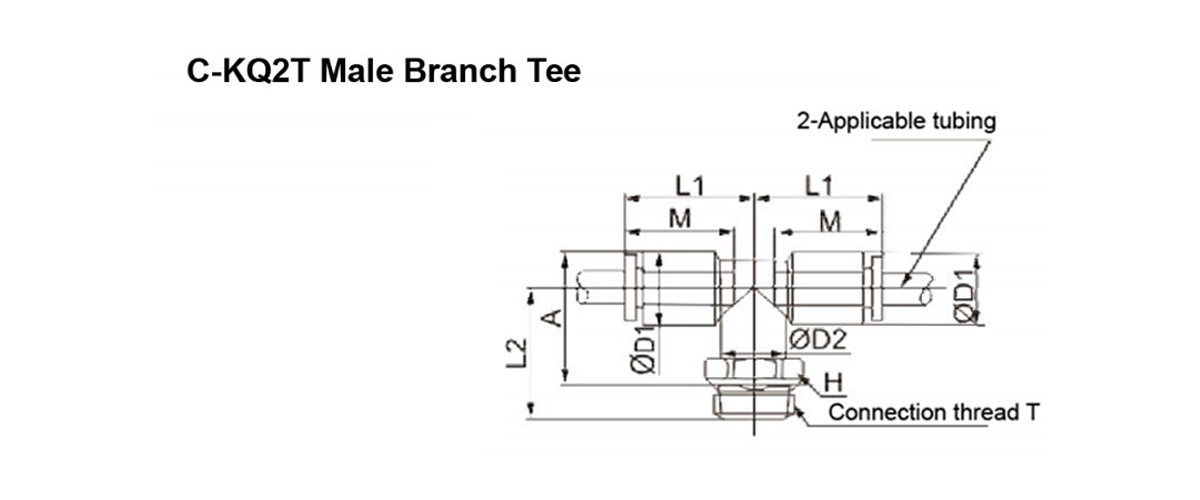

    Ø3.2 C-KQ2T23-01S 1/8 10 9.6 10 17.5 21.5 22.5 15.5 3.4 2.9 10
    C-KQ2T23-02S 1/4 4 25.5 24.5 20
    Ø4 C-KQ2T04-01S 1/8 10 10.4 10 18 22 23 16 6.0 4.1 13
    C-KQ2T04-02S 1/4 14 26 25 19
    Ø6 C-KQ2T06-01S 1/8 10 12.8 10 20 23 25.5 17 13.9 11.0 12
    C-KQ2T06-02S 1/4 14 27 27.5 20
    C-KQ2T06-03S 3/8 17 29 29 34
    Ø8 C-KQ2T08-01S 1/8 12 15.2 12 23 24.5 28 18.5 26.3 18.2 14
    C-KQ2T08-02S 1/4 14 28.5 30 22
    C-KQ2T08-03S 3/8 17 30.5 31.5 36
    Ø10 C-KQ2T10-01S 1/8 17 18.5 17 26.5 27 32 21 40.8 29.0 31
    C-KQ2T10-02S 1/4 30 33 29
    C-KQ2T10-03S 3/8 32 34.5 39
    C-KQ2T10-04S 1/2 22 36 37 66
    Ø12 C-KQ2T12-02S 1/4 17 20.9 17 28.5 31 35.5 22 57.2 45.2 31
    C-KQ2T12-03S 3/8 33 37 41
    C-KQ2T12-04S 1/2 22 37 39.5 38
    Ø16 C-KQ2T16-03S 3/8 22 26.5 20.9 34 38 44.5 25 71 71 112
    C-KQ2T16-04S 1/2 40.5 46 100 100 116

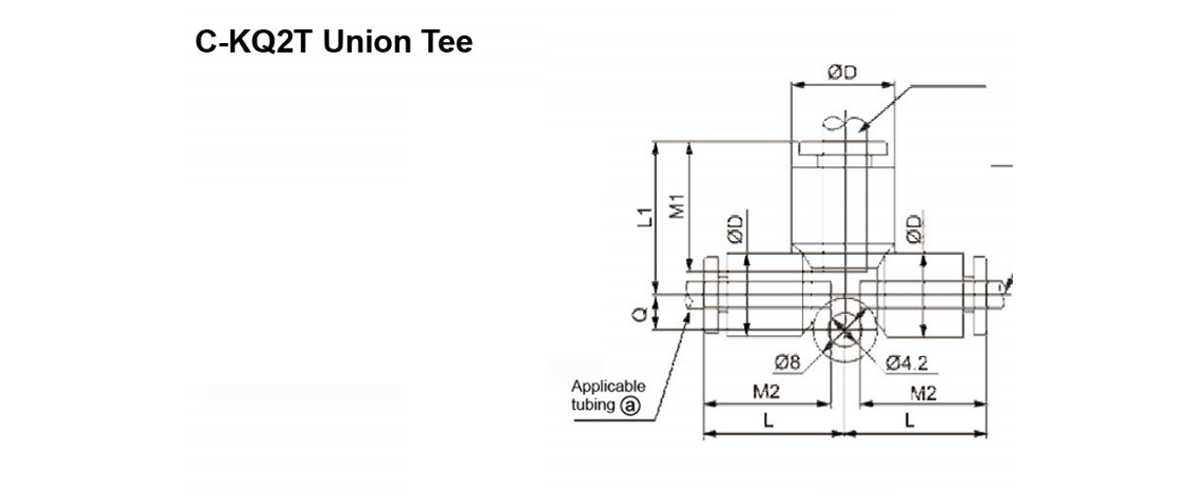

    Applicable Tubing O.D (mm) Model ØD L Q M Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ 1 2 Nylon Urethane
    Ø4 C-KQ2T04-00 10.4 18 4.5 16 6.4 4.4 7
    Ø6 C-KQ2T06-00 12.8 20 5.3 17 13.4 10.6 10
    Ø8 C-KQ2T08-00 15.2 23 6 18.5 25.6 17.7 15
    Ø10 C-KQ2T10-00 18.5 26.5 6.8 21 40 28.4 25
    Ø12 C-KQ2T12-00 20.9 28.5 7.5 22 57.4 45.4 29
    Ø16 C-KQ2T16-00 26.5 34 10 25 100 (84) 40
    Ø4 Ø6 C-KQ2T04-06 12.8 20 4.5 17 16 7.1 6.5 5
    Ø6 Ø8 C-KQ2T06-08 15.2 23 5.3 18.5 17 16.4 16.4 8
    Ø8 Ø10 C-KQ2T08-10 18.5 26.5 6 21 18.5 36 27.2 14
    Ø10 Ø12 C-KQ2T10-12 20.9 28.5 6.8 22 21 56 44.5 21
    Ø12 Ø16 C-KQ2T12-16 26.5 34 10 25 22 108.5 (92.2) 88
    Ø6 Ø4 C-KQ2T06-04 120.8 20 5.3 16 17 6.4 4.4 10
    Ø8 Ø6 C-KQ2T08-06 15.2 23 6 17 18.5 13.4 10.6 15
    Ø10 Ø8 C-KQ2T10-08 18.5 26.5 7.5 18.5 21 25.6 17.7 25
    Ø12 Ø10 C-KQ2T12-10 20.9 28.5 7.5 21 22 40 28.4 29
    Ø16 Ø12 C-KQ2T16-12 26.5 34 10 22 25 57.4 45.4 90

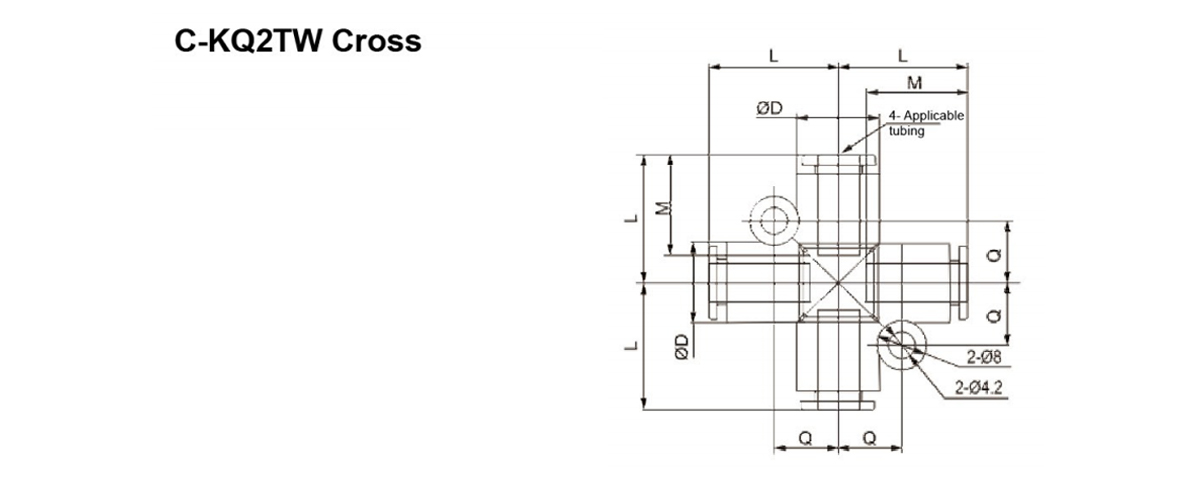

    Applicable Tubing O.D (mm) Model ØD L Q M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2TW04-00 10.4 18 8.7 16 6.4 4.4 9
    Ø6 C-KQ2TW06-00 12.8 20 9.9 17 13.4 10.6 13
    Ø8 C-KQ2TW08-00 15.2 23 11.1 18.5 25.6 17.7 20
    Ø10 C-KQ2TW10-00 18.5 26.5 12.8 21 40 28.4 33
    Ø12 C-KQ2TW12-00 20.9 28.5 13.9 22 57.4 45.4 39

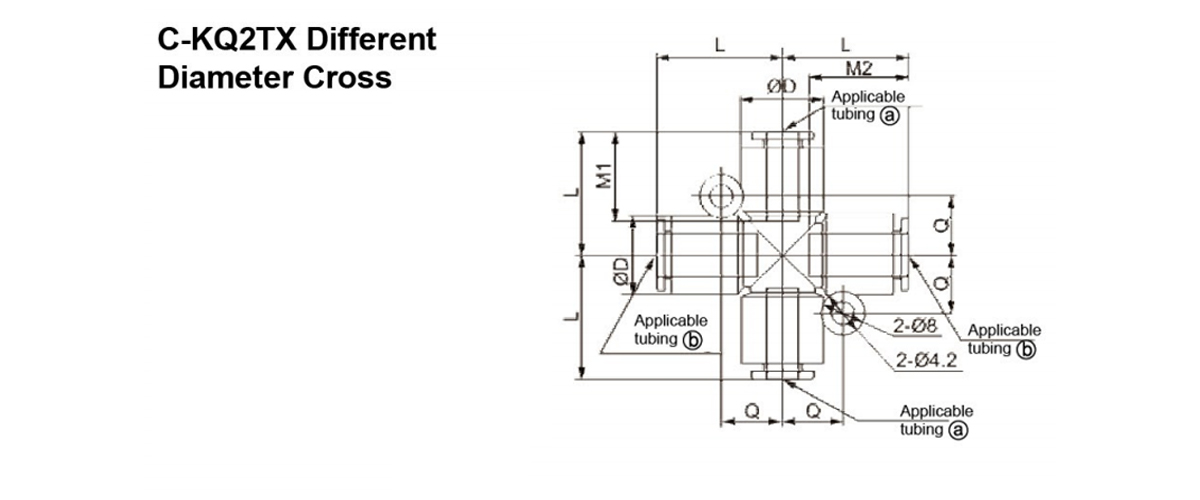

    Applicable
    Tubing O.D
    (mm)     		Model ØD L Q M1 M2 Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ Nylon Urethane
    Ø6 Ø8 C-KQ2TX06-08 15.2 23 11.1 18.5 17 13.4 10.6 13
    Ø8 Ø10 C-KQ2TX08-10 18.5 26.5 12.8 21 18.5 25.6 17.7 27
    Ø10 Ø12 C-KQ2TX10-12 20.9 28.5 13.9 22 21 40 28.4 36

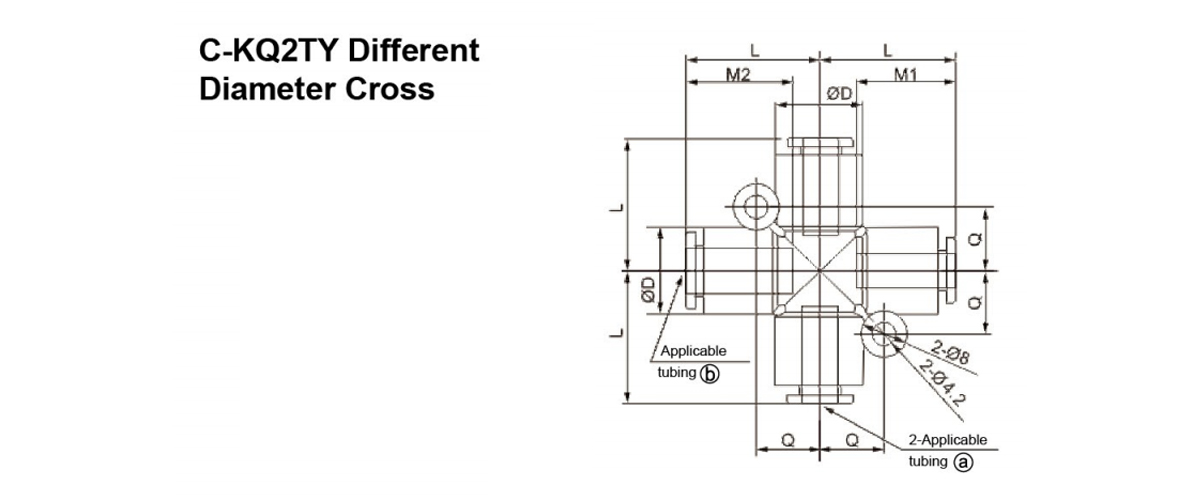

    Applicable
    Tubing O.D
    (mm)     		Model ØD L Q M1 M2 Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ Nylon Urethane
    Ø6 Ø8 C-KQ2TY06-08 15.2 23 11.1 17 18.5 13.4 10.6 15
    Ø8 Ø10 C-KQ2TY08-10 18.5 26.5 12.8 18.5 21 25.6 17.7 23
    Ø10 Ø12 C-KQ2TY10-12 20.9 28.5 13.9 21 22 40 28.4 35

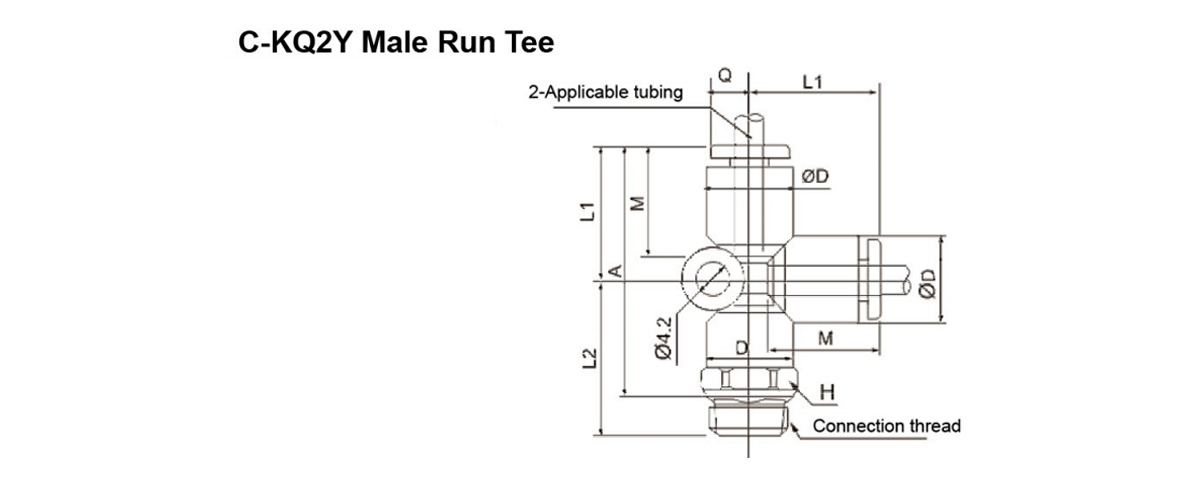

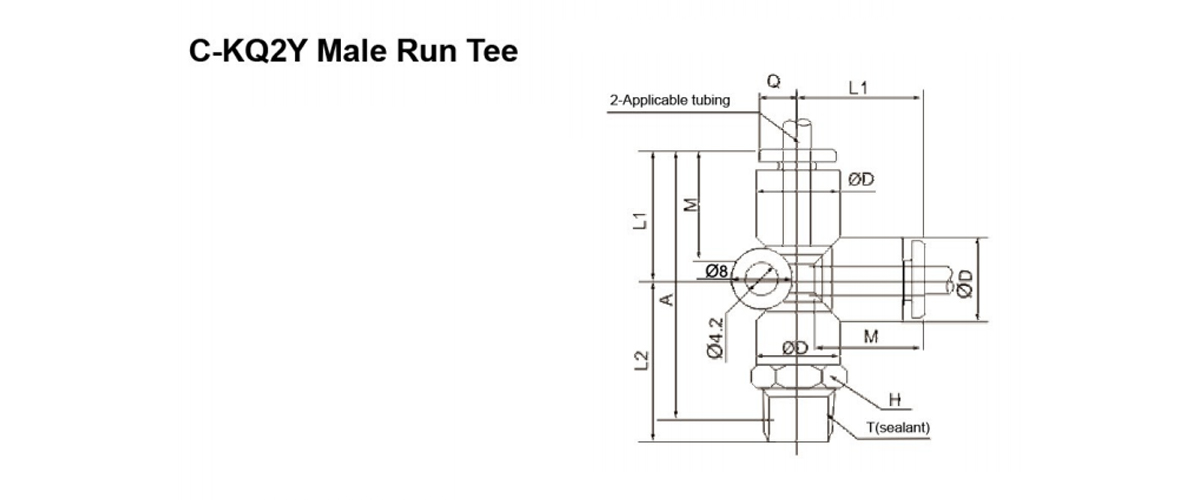

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD Q L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø04 C-KQ2Y 04-01S R1/8 14 10.5 4.6 18.1 22.1 36.1 16.1 6.4 4.4 13
    C-KQ2Y 04-02S R1/4 26.1 38.1 19
    Ø06 C-KQ2Y 06-01S R1/8 12.9 5.4 20.1 23.1 39.1 17.1 13.4 10.6 12
    C-KQ2Y 06-02S R1/4 27.1 41.1 20
    C-KQ2Y 06-03S R3/8 29.1 42.6 34
    Ø08 C-KQ2Y 08-01S R1/8
    17     		15.3 6.1 23.1 24.6 43.6 18.6 25.6 12.7 14
    C-KQ2Y 08-02S R1/4 28.6 45.6 22
    C-KQ2Y 08-03S R3/8 30.6 47.2 36
    Ø10 C-KQ2Y 10-01S R1/8 19 18.6 6.9 26.6 27.1 49.7 21 40 28.4 31
    C-KQ2Y 10-02S R1/4 30.1 50.7 29
    C-KQ2Y 10-03S R3/8 32.1 52.1 39
    C-KQ2Y 10-04S R1/2 22 36.1 54.6 66
    Ø12 C-KQ2Y 12-02S R1/4 21 7.6 28.6 31.1 53.6 22.1 57.4 45.4 31
    C-KQ2Y 12-03S R3/8 33.1 55.2 41
    C-KQ2Y 12-04S R1/2 37.1 57.6 68

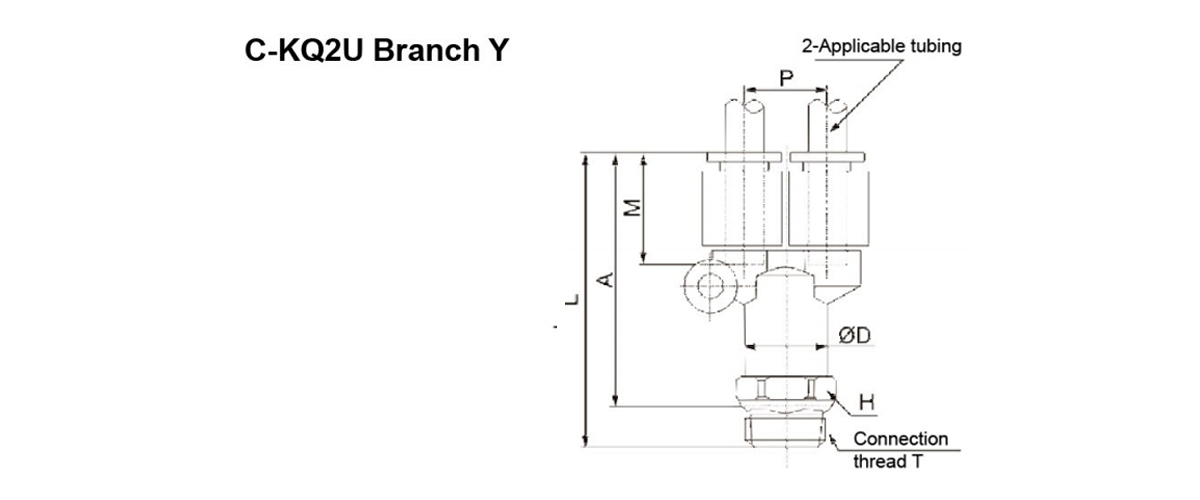

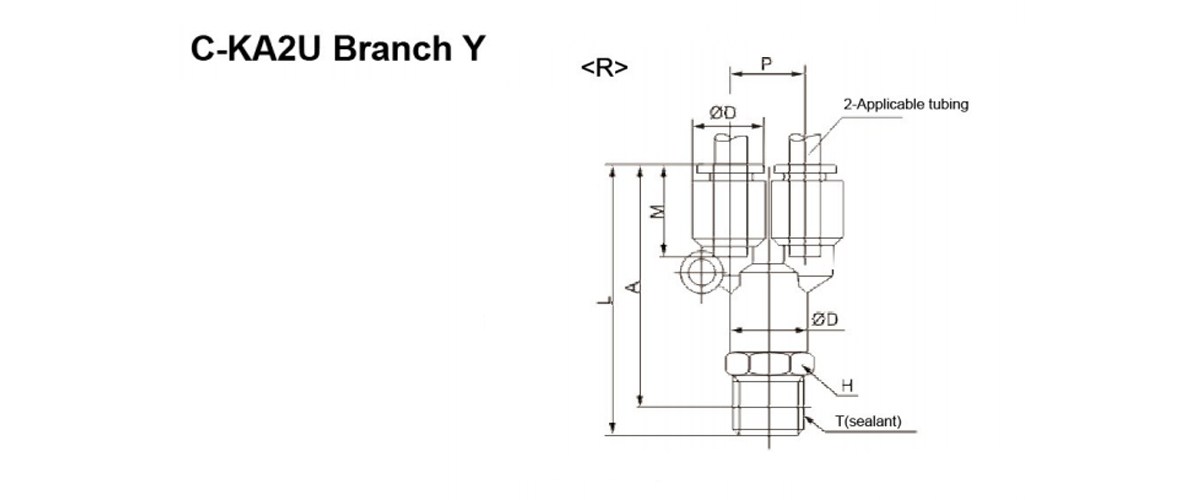

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L P A M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2U04-01S 1/8 11 10.4 42 10.4 38 16 4.2 4.2 11
    C-KQ2U04-02S 1/4 14 46 40 20
    Ø6 C-KQ2U06-01S 1/8 13 12.8 45.5 12.8 41.5 17 13.4 10.6 11
    C-KQ2U06-02S 1/4 14 49 43 21
    C-KQ2U06-03S 3/8 17 51 44.5 34
    Ø8 C-KQ2U08-01S 1/8 17 15.2 52.5 15.2 48.5 18.5 25.6 17.7 15
    C-KQ2U08-02S 1/4 55.5 49.5 23
    C-KQ2U08-03S 3/8 56.5 50 35
    Ø10 C-KQ2U10-02S 1/4 19 18.5 61 18.5 55 21 40 28.4 30
    C-KQ2U10-03S 3/8 62 55.5 40
    C-KQ2U10-04S 1/2 22 65 57 65
    Ø12 C-KQ2U12-02S 1/4 22 20.9 64.5 20.9 58.5 22 57.4 45.4 32
    C-KQ2U12-03S 3/8 65.5 59 40
    C-KQ2U12-04S 1/2 68.5 60.5 65
    Ø16 C-KQ2U16-03S 27 26.5 76 26.5 69.5 25 81 (81) 106
    C-KQ2U16-04S 79 71 113 (96) 111

    Applicable
    Tubing O.D
    (mm)     		Model ØD1 ØD2 L1 L2 P I Q M1 M2 Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ Nylon Urethane

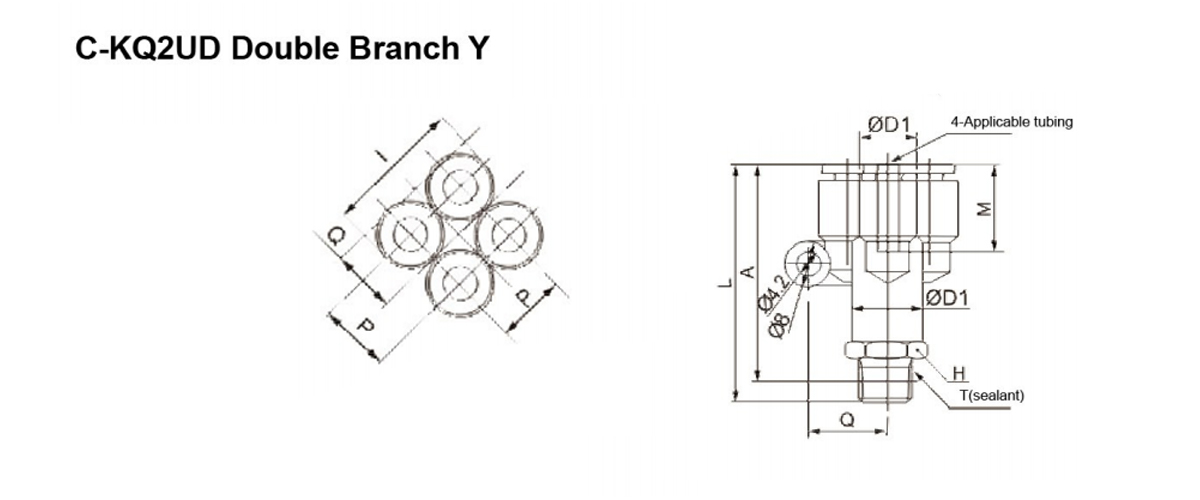

    Ø4 Ø6 C-KQ2UD04-06 10.4 12.8 35.5 18.2 10.4 21 9.7 16 17 4.2 4.2 10
    Ø6 Ø8 C-KQ2UD06-08 12.8 15.2 40.5 20.3 12.8 26 11.7 17 18.5 13.4 10.6 17

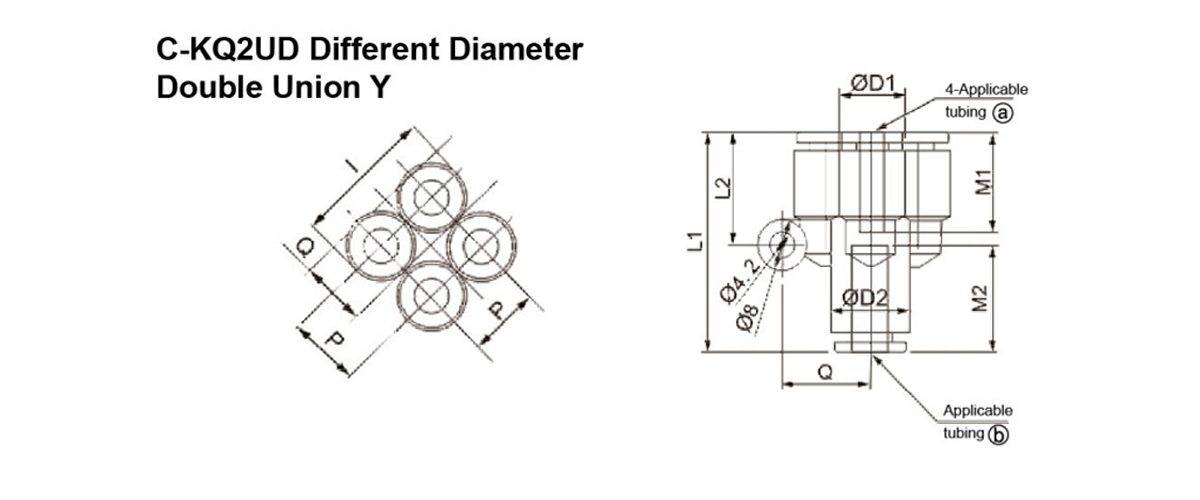

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L I A Q M P
    Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2UD04-01S 1/8 13 10.4 12.8 43.5 21 39.5 9.7 16 10.4 4.2 4.2 17
    C-KQ2UD04-02S 1/4 14 47 41 25
    Ø6 C-KQ2UD06-01S 1/8 17 12.8 15.2 50.5 26 46.5 11.7 17 12.8 13.4 10.6 29
    C-KQ2UD06-02S 1/4 53.5 47.5

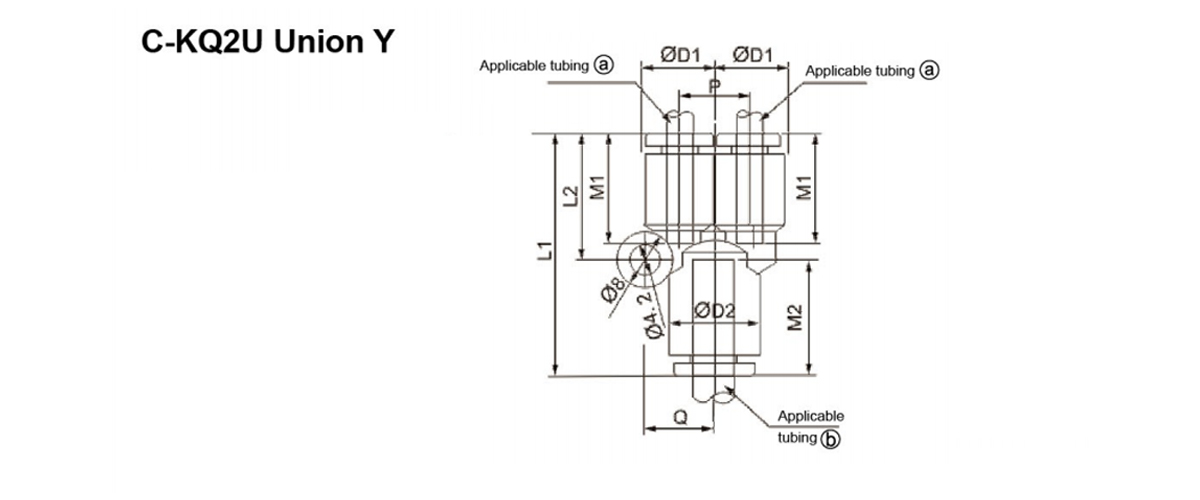

    Applicable Tubing O.D
    (mm)     		Model ØD L1 L2 P Q M Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ 1 2 Nylon Urethane
    Ø4 C-KQ2U04-00 10.4 34 18 10.4 9.7 16 4.2 4.2 7
    Ø6 C-KQ2U06-00 12.8 34 20 12.8 11.7 17 13.4 10.6 9
    Ø8 C-KQ2U08-00 15.2 42.5 24.5 15.2 13.7 18.5 25.6 17.7 11
    Ø10 C-KQ2U10-00 18.5 48 27.5 18.5 16.1 21 40 28.4 16
    Ø12 C-KQ2U12-00 20.9 51 30 20.9 18.1 22 57.4 45.4 23
    Ø16 C-KQ2U16-00 26.5 61.5 36.5 26.5 23 25 113 (96) 54
    Ø4 Ø6 C-KQ2U04-06 12.8 35 18 10.4 9.7 16 17 4.2 4.2 6
    Ø6 Ø8 C-KQ2U06-08 15.2 39.5 20 12.8 11.7 17 18.5 13.4 10.6 11
    Ø8 Ø10 C-KQ2U08-10 18.5 45 24.5 15.2 13.7 18.5 21 25.6 17.1 18
    Ø10 Ø12 C-KQ2U10-12 20.9 49 27.5 18.5 16.1 21 22 40 28.4 27
    Ø12 Ø16 C-KQ2U12-16 26.5 66.5 41.5 26.5 23 22 25 57.4 45.4 100
    Ø6 Ø4 C-KQ2U06-04 12.8 35 18 10.4 9.7 17 16 4.2 4.2 6
    Ø8 Ø6 C-KQ2U08-06 15.2 39.5 20 12.8 11.7 18.5 17 13.4 10.6 11
    Ø10 Ø8 C-KQ2U10-08 18.5 45 24.5 15.2 13.7 21 18.5 25.6 17.1 18
    Ø12 Ø10 C-KQ2U12-10 20.9 49 27.5 18.5 16.1 22 21 40 28.4 27
    Ø16 Ø12 C-KQ2U16-12 26.5 66.5 41.5 26.5 23 25 22 57.4 45.4 100


    Applicable
    Tubing
    (mm)     		Applic-
    able Fitting
    Size
    ØD     		Model ØD L1 L2 P Q A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

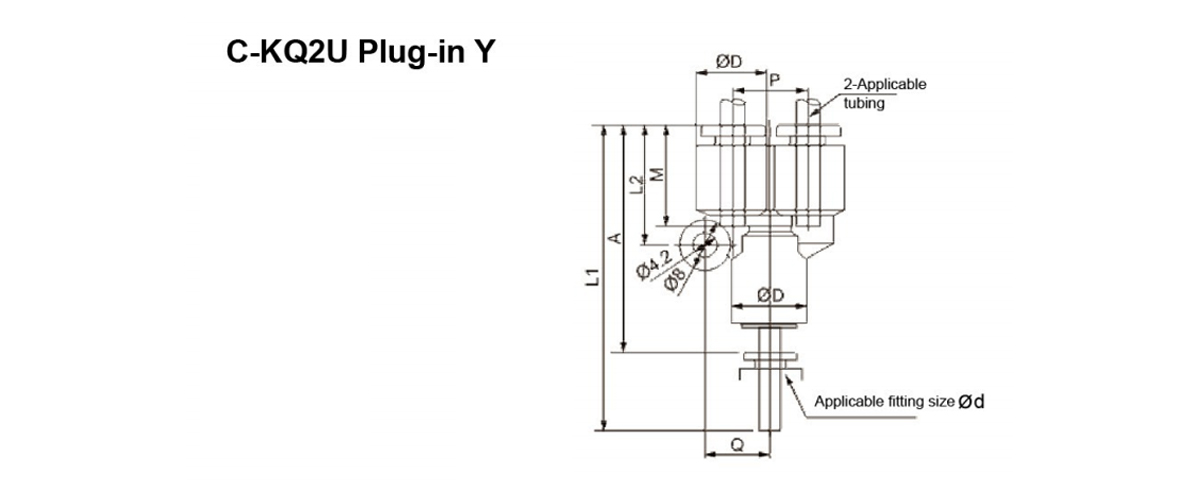

    Ø4 Ø4 C-KQ2U04-99 10.4 51.5 18 10.4 9.7 35.5 16 4.2 4.2 22
    Ø6 Ø6 C-KQ2U06-99 12.8 55.5 20 12.8 11.7 38.5 17 13.4 10.6 28
    Ø8 Ø8 C-KQ2U08-99 15.2 64.5 24.5 15.2 13.7 46 18.5 25.6 17.7 21
    Ø10 Ø10 C-KQ2U10-99 18.5 71.5 27.5 18.5 16.1 50.5 21 40 28.4 36
    Ø12 Ø12 C-KQ2U12-99 20.9 75.5 30 20.9 18.1 53.5 22 57.4 45.4 32
    Ø16 Ø16 C-KQ2U16-99 26.5 90 36.5 26.5 23 65 25 113 (96) 88

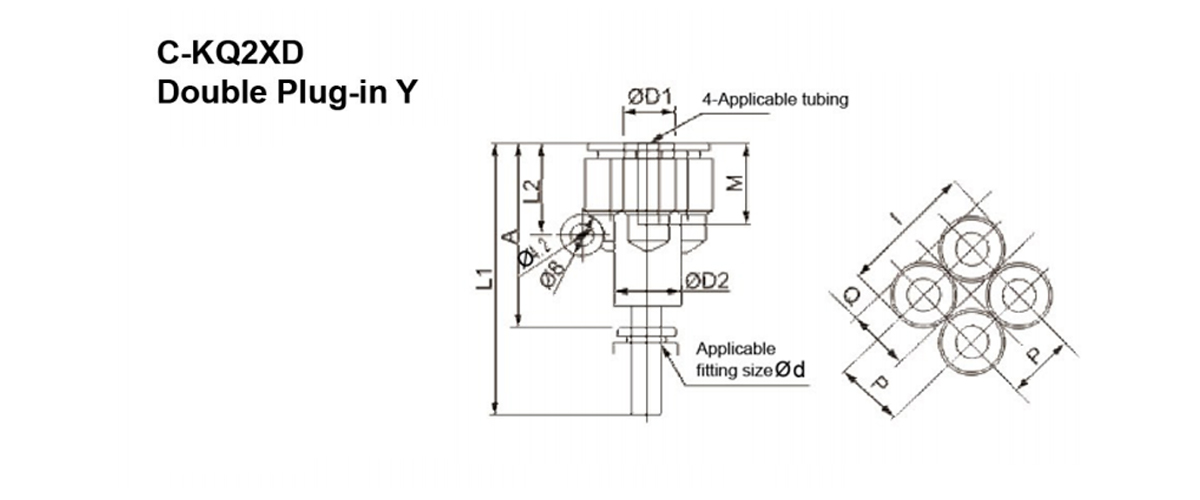

    Applicable
    Tubing
    (mm)
    Applic-
    able Fitting
    Size
    XD     		Model ØD1 ØD2 L1 L2 I Q A P M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 Ø6 C-KQ2XD04-06 10.4 12.8 54 18.2 21 9.7 37 10.4 16 4.2 4.2 10
    Ø6 88 C-KQ2XD06-08 12.8 15.2 62.5 20.3 26 11.7 44 12.8 17 13.4 10.6 23

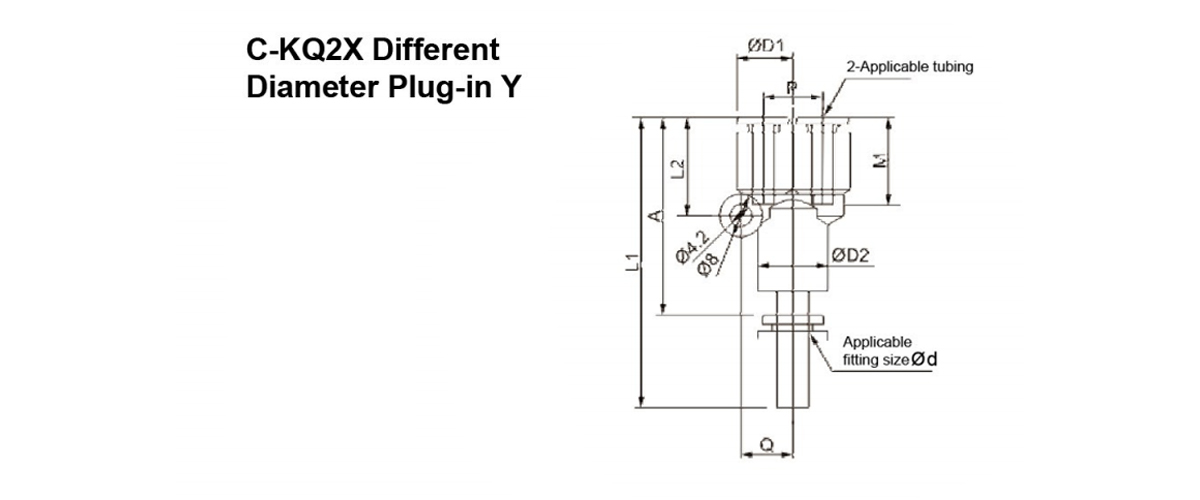

    Applicable
    Tubing
    (mm)     		Applic-
    able Fitting
    Size
    ØD     		Model ØD1 ØD2 L1 L2 A P Q M Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 Ø6 C-KQ2X04-06 10.4 12.8 53.5 18.5 36.5 10.4 9.7 16 4.2 4.2 17
    Ø6 Ø8 C-KQ2X06-08 12.8 15.2 61.5 20.5 43 12.8 11.7 17 13.4 10.6 28
    Ø8 Ø10 C-KQ2X08-10 15.2 18.5 68.5 24.5 47.5 15.2 13.7 18.5 25.6 17.1 38
    Ø10 Ø12 C-KQ2X10-12 18.5 20.9 73.5 27.5 51.5 18.5 16.1 21 40 28.4 52

    Applicable Tubing
    (mm)     		Model L M1 M2 ØD Weight
    (g)
    ⓐ ⓑ

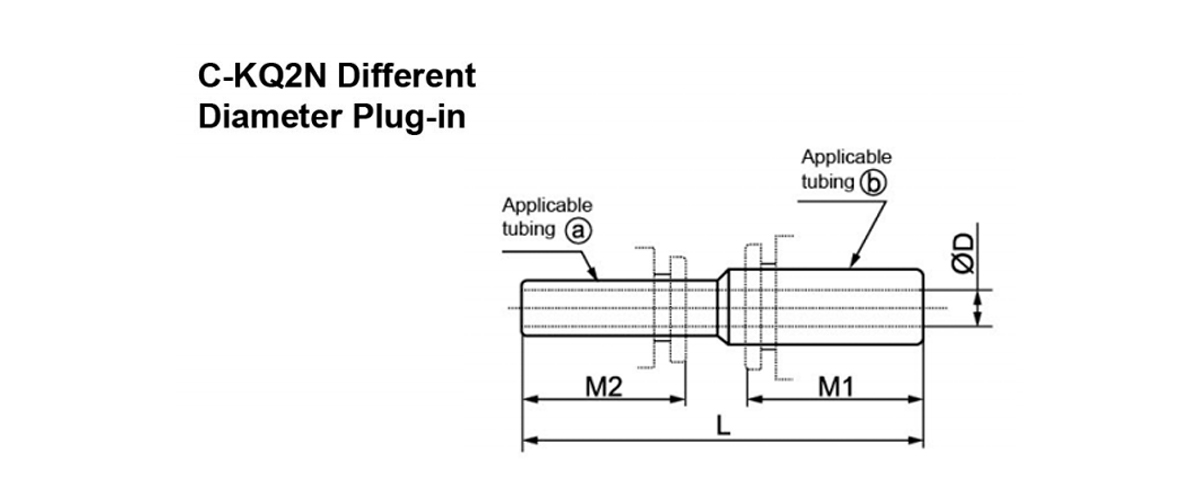

    Ø4 Ø6 C-KQ2N04-06 38 17 16 2.5 2
    Ø6 Ø8 C-KQ2N06-08 42 18.5 17 4 2
    Ø8 Ø10 C-KQ2N08-10 47 21 18.5 6 13.2
    Ø10 Ø12 C-KQ2N10-12 51 22 21 8 18.2

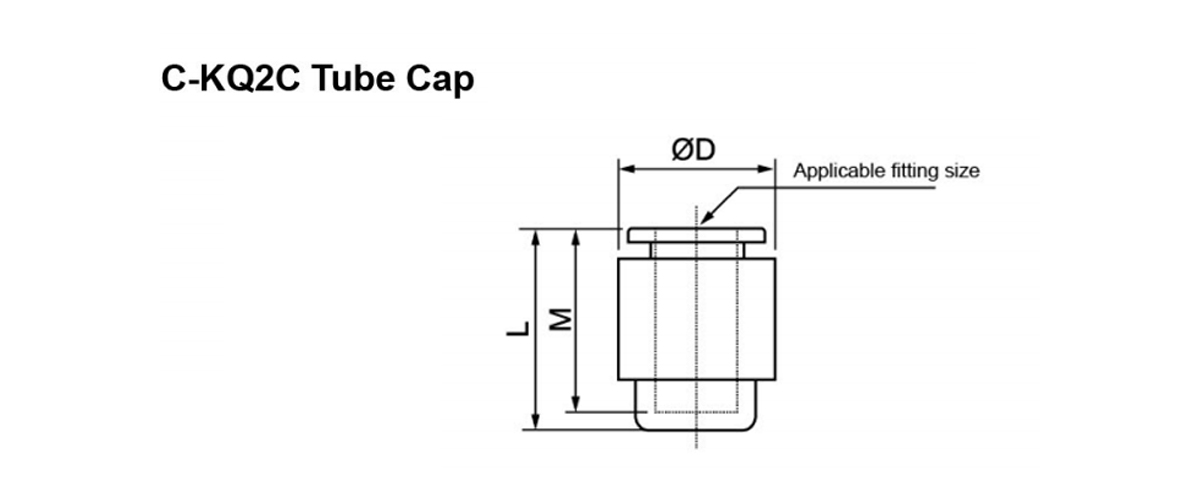

    Applicable Tubing
    (mm)     		Model ØD L M
    Weight
    (g)
    Ø4 C-KQ2C04-00 10.4 17 16 3
    Ø6 C-KQ2C06-00 12.8 18.5 17 3
    Ø8 C-KQ2C08-00 15.2 20.5 18.5 4
    Ø10 C-KQ2C10-00 18.5 23 21 6
    Ø12 C-KQ2C12-00 20.9 24 22 8

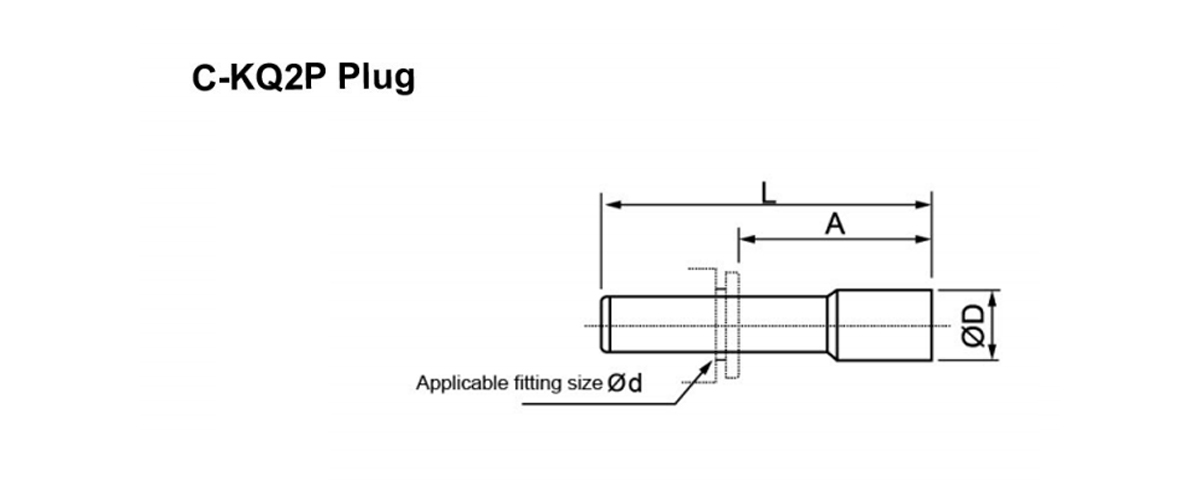

    Applicable
    Fitting Size
    ØD     		Model ØD L A Weight
    (g)
    Ø4 C-KQ2P-04 6 32 16 1
    Ø6 C-KQ2P-06 8 35 18 1
    Ø8 C-KQ2P-08 10 39 20.5 2
    Ø10 C-KQ2P-10 12 43 22 3.5
    Ø12 C-KQ2P-12 14 45.5 24 5

    Applicable
    Tubing
    (mm)     		Applicable
    Fitting Size
    ØD     		Model ØD L A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

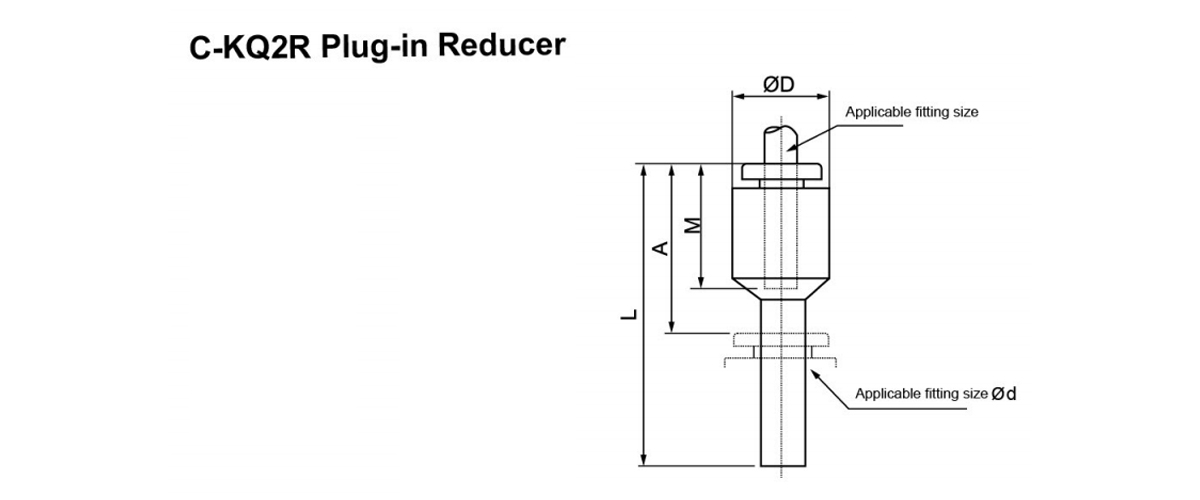

    Ø4 Ø6 C-KQ2R04-06 10.4 34.5 17.5 15 5.6 4 1.8
    88 C-KQ2R04-08 36.5 18 2.0
    Ø10 C-KQ2R04-10 12.8 39.5 18.5 3.3
    Ø6 Ø4 C-KQ2R06-04 12.8 37 21 17 4 4 2.5
    88 C-KQ2R06-08 12.8 37 18.5 13.1 10.4 2.5
    Ø10 C-KQ2R06-10 39.5 18.5 3
    Ø12 C-KQ2R06-12 15.2 42 20 4.7
    Ø8 Ø10 C-KQ2R08-10 15.2 41 20 18.5 26.1 18.0 4.0
    Ø12 C-KQ2R08-12 42 4.6
    Ø10 Ø12 C-KQ2R10-12 18.5 44.5 23 21 41.5 32.8 33

    Applicable
    Tubing
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		L
    Mount
    -ing
    Hole     		M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    φ4 C-KQ2E04-00 M12×1 14 32.5 13 16 5.6 4 26
    Φ6 C-KQ2E06-00 M¹4×1 17 34.5 15 17 13.1 10.4 33
    φ8 C-KQ2E08-00 M16×1 19 38 17 18.5 26.1 18.0 52
    φ10 C-KQ2E10-00 M20×1 24 42.5 21 21 41.5 29.5 70
    φ12 C-KQ2E12-00 M22×1 27 44 23 22 58.3 46.1 90
    Φ16 C-KQ2E16-00 M28×1.5 32 51 29 28 113 (96) 115

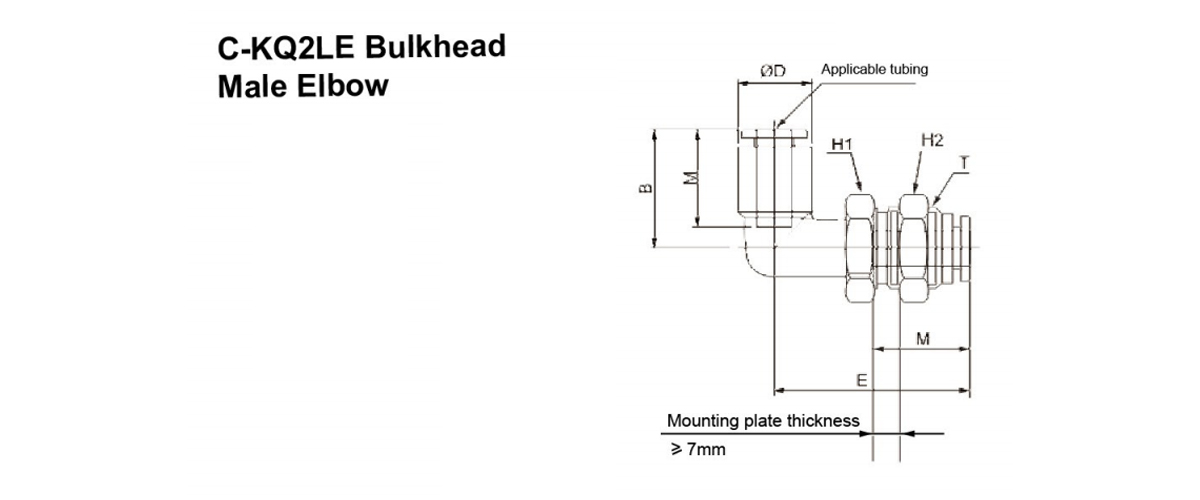

    Applicable
    Tubing
    (mm)     		Model Connection Thread T
    H1
    Width
    Across
    Flats
    H2
    Width
    Across
    Flats     		B E ØD
    Mount
    -ing
    Hole     		M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2LE04-00 M12×1 14 14 18.5 31 10.4 13 16 4.2 4.2 18
    Ø6 C-KQ2LE06-00 M14×1 17 17 20.5 34 12.8 15 17 11.4 9.0 25
    Ø8 C-KQ2LE08-00 M16×1 17 19 23.5 38.5 15.2 17 18.5 21.6 14.9 33
    Ø10 C-KQ2LE10-00 M20×1 22 24 26.5 43.5 18.5 21 21 35.2 25.0 63
    Ø12 C-KQ2LE12-00 M22×1 24 27 28.5 45.5 20.9 23 22 50.2 39.7 77

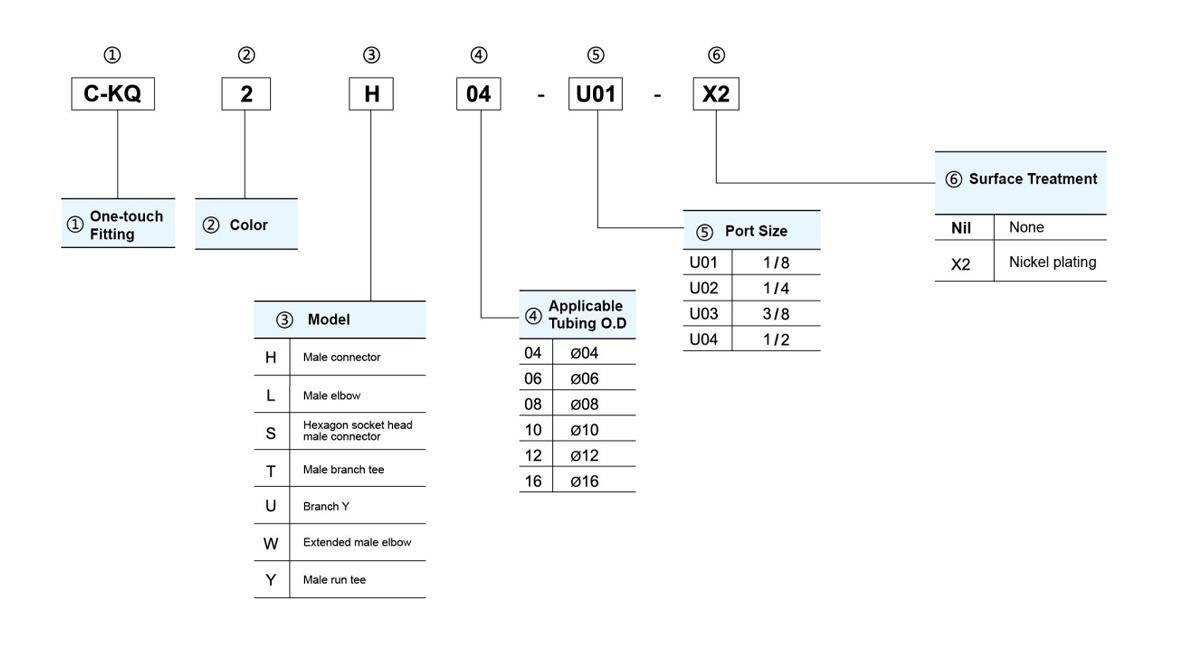

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		L A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2H04-U01 18 10 18.5 13.5 16 5.6 5.6 5
    C-KQ2H04-U02 14 14 16.5 10.5 10
    Ø6 C-KQ2H06-U01 1/8 1214 19.5 14.5 17 13.1 13.1 5
    C-KQ2H06-U02 14 13 10
    C-KQ2H06-U03 38 17 17.5 11.5 16
    Ø8 C-KQ2H08-U01 18 14 25 20.5 18.5 26.1 18.0 11
    C-KQ2H08-U02 14 21.5 15.5 27
    C-KQ2H08-U03 3/8 17 19.5 13.5 33
    Ø10 C-KQ2H10-U01 1/8 17 28 23 21 41.5 29.5 17
    C-KQ2H10-U02 14 22 17
    C-KQ2H10-U03 3/8 24 18 14
    C-KQ2H10-U04 12 22 22 14 28
    Ø12 C-KQ2H12-U02 14 19 30.5 24.5 22 58.3 46.1 22
    C-KQ2H12-U03 3/8 25.5 19.5 16
    C-KQ2H12-U04 12 22 24.5 16.5 28
    Ø16 C-KQ2H16-U03 3/8 24 33.5 27.5 24 81 (81) 39
    C-KQ2H16-U04 1/6
    72     		28.5 20.5 113 (96) 25


    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    ( g)
    Nylon Urethane
    Ø4 C-KQ2L04-U01 18 10 10.4 10 18 20 20.5 16 4.2 4.2 8
    C-KQ2L04-U02 1/4 14 22 21.5 14
    Ø6 C-KQ2L06-U01 1/8 10 12.8 10 20 21.5 23.5 17 11.4 11.4 9
    C-KQ2L06-U02 14 14 23 15
    C-KQ2L06-U03 3/8 17 24 24.5 23
    Ø8 C-KQ2L08-U01 18 12 15.2 12 23 22.5 25.5 18.5 21.6 14.9 11
    C-KQ2L08-U02 14 14 24.5 26 16
    C-KQ2L08-U03 3/8 17 25.5 27 24
    Ø10 C-KQ2L10-U01 1/8 17 18.5 17 26.5 25 29.5 21 21.6 14.9 24
    C-KQ2L10-U02 14 26.5 30 35.2 25.0 21
    C-KQ2L10-U03 3/8 27 30.5 25
    C-KQ2L10-U04 12 22 30 31.5 45
    Ø12 C-KQ2L12-U02 14 17 20.9 17 28.5 27 31.5 22 50.2 39.7 23
    C-KQ2L12-U03 3/8 28 32.5 27
    C-KQ2L12-U04 12 22 31 33.5 48
    Ø16 C-KQ2L16-U03 3/8 22 26.5 21 33 40.5 33 24 71 (71) 49
    C-KQ2L16-U04 35 100 (84) 50

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    ( mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2T04-U01 18 10 10.4 10 18 20 21.5 16 6.0 6.0 9
    C-KQ2T04-U02 14 14 22 15
    Ø6 C-KQ2T06-U01 1/8 10 12.8 10 20 21.5 23.5 17 13.9 13.9 11
    C-KQ2T06-U02 14 14 23 17
    C-KQ2T06-U03 3/8 17 24 24.5 26
    Ø8 C-KQ2T08-U01 18 12 15.2 12 23 22.5 26 18.5 26.3 18.2 15
    C-KQ2T08-U02 14 14 24.5 20
    C-KQ2T08-U03 3/8 17 25.5 27 28
    Ø10 C-KQ2T10-U01 18 17 18.5 17 26.5 25 29.5 21 40.8 29.0 30
    C-KQ2T10-U02 1/4 26.5 30 27
    C-KQ2T10-U03 3/8 27 30.5 31
    C-KQ2T10-U04 12 22 30 31.5 51
    Ø12 C-KQ2T12-U02 14 17 20.9 17 28.5 27 31.5 22 57.2 45.2 31
    C-KQ2T12-U03 3/8 28 32.5 34
    C-KQ2T12-U04 1/2 22 31 33.5 54
    Ø16 C-KQ2T16-U03 22 26.5 21 33 40.5 33 24 71 (71) 62
    C-KQ2T16-U04 35 100 (100) 63

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 L P A M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2U04-U01 18 11 10.4 40 10.4 36 16 4.2 4.2 11
    C-KQ2U04-U02 1/4 14 42 16
    Ø6 C-KQ2U06-U01 1/8 13 12.8 43.5 12.8 39.5 17 13.4 13.4 14
    C-KQ2U06-U02 1/4 14 45 39 18
    C-KQ2U06-U03 3/8 17 46 40 26
    Ø8 C-KQ2U08-U01 18 17 15.2 50.5 15.2 46.5 18.5 25.6 17.7 27
    C-KQ2U08-U02 14 52 46 25
    C-KQ2U08-U03 3/8 51.5 45.5 28
    Ø10 C-KQ2U10-U02 1/4 19 18.5 57.5 18.5 51.5 21 40 28.4 38
    C-KQ2U10-U03 3/8 36
    C-KQ2U10-U04 1/2 22 59 51 51
    Ø12 C-KQ2U12-U02 14 22 20.9 61 20.9 55 22 57.4 45.4 53
    C-KQ2U12-U03 3/8 52
    C-KQ2U12-U04 62.5 54.5 52

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g )
    Nylon Urethane
    Ø4 C-KQ2W04-U01 1/8 10 10.4 10 18 34.5 35.5 16 6.4 4.0 16
    C-KQ2W04-U02 1/4 14 37 38.5 26
    Ø6 C-KQ2W06-U01 1/8 10 12.8 10 20 38.5 41 17 10.9 10.9 18
    C-KQ2W06-U02 1/4 14 40.5 29
    C-KQ2W06-U03 3/8 17 41.5 42 40
    Ø8 C-KQ2W08-U01 1/8 12 15.2 12 23 43.5 46.5 18 20.5 14.2 28
    C-KQ2W08-U02 1/4 14 45.5 47 35
    C-KQ2W08-U03 3/8 17 46 48 46
    Ø10 C-KQ2W10-U02 1/4 17 18.5


    20.9     		17


    17     		26.5


    28.5     		52.5 56 21


    22     		33.5


    47.7     		23.8



    37.7     		67
    C-KQ2W10-U03 3/8 57
    C-KQ2W10-U04 1/2 22 54.5 98
    Ø12 C-KQ2W12-U02 1/4 17 54 58.5 69
    C-KQ2W12-U03 3/8 59
    C-KQ2W12-U04 22 56 99

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2S04-U01 1/8 3 10 23.5 18.5 16 4.1 3.6 7
    Ø6 C-KQ2S06-U01 1/8 4 11.8 24 19 17 10.0 9.9 9
    C-KQ2S06-U02 1/4 13.5 18 107 10.0 12
    Ø8 C-KQ2S08-U01 18 5 14 27.5 22.5 18.5 17.2 16.2 12
    C-KQ2S08-U02 1/4 6 28 22 23.3 14
    C-KQ2S08-U03 3/8 17 27.5 21.5 24
    Ø10 C-KQ2S10-U01 1/8 5 17 30 25 21 17.2 10.0 18
    C-KQ2S10-U02 1/4 8 29 23 39.0 26.6 17
    C-KQ2S10-U03 3/8 28.5 22.5 19
    C-KQ2S10-U04 1/2 21 29 21 36
    Ø12 C-KQ2S12-U02 1/4 8 19 30.5 25 22 46.0 44.5 20
    C-KQ2S12-U03 3/8 9 31 60.0 22
    C-KQ2S¹2-U04 1/2 21 28.5 20.5 30

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2V04-U01 18 8 10.4 13.4 22 13.5 25.5 20.5 16 2.9 2.9 12
    Ø6 C-KQ2V06-U01 1/8 8 12.8 13.4 24 13.5 25.5 20.5 17 7.5 7.5 13
    C-KQ2V06-U02 1/4 10 15.4 23.5 15.5 28 22 21
    Ø8 C-KQ2V08-U01 18 12 15.2 17.6 28.5 14.5 27.5 22.5 18.5 11.2 2430 2225
    C-KQ2V08-U02 14 16.5 29.5 23.5
    C-KQ2V08-U03 3/8 14 20.6 27.5 18.5 34 28 14.3 47 36
    Ø10 C-KQ2V10-U02 1/4 14 18.5 20.6 31 18.5 34 28 21 27 20.3 35
    C-KQ2V10-U03 3/8 38
    Ø12 C-KQ2V12-U03 3/8 17 20.9 25.2 34 20 26.5 30.5 22 39 30.8 52
    C-KQ2V12-U04 1/12 22.5 39.5 31.5 62

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		D Q L1 L2 A M Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2Y 04-U01 18 11 10.5 4.6 18.1 20.1 34.1 16.1 6.4 6.4 13
    C-KQ2Y 04-U02 1/4 14 22.1 34.1 19
    Ø6 C-KQ2Y 06-U01 1/8 13 12.9 5.4 20.1 21.1 37.1 17.1 13.4 13.4 12
    C-KQ2Y 06-U02 14 14 23.1 37.1 20
    C-KQ2Y 06-U03 3/8 17 24.1 38.1 34
    Ø8 C-KQ2Y 08-U01 1/8 17 15.3 6.1 23.1 22.6 41.6 18.6 25.6 17.7 14
    C-KQ2Y 08-U02 14 24.6 42.1 22
    C-KQ2Y 08-U03 3/8 25.6 43.6 36
    Ø10 C-KQ2Y 10-U02 1/4 19 18.6 6.9 26.6 26.1 47.2 21 40 28.4 29
    C-KQ2Y 10-U03 3/8 27.1 48.1 39
    C-KQ2Y 10-U04 1/2 30.1 48.6 66
    Ø12 C-KQ2Y 12-U02 1/4 22 21 7.6 28.6 27.1 50.1 22.1 57.4 45.4 31
    C-KQ2Y 12-U03 3/8 28.1 51.2 41
    C-KQ2Y 12-U04 1/2 31.1 51.6 68

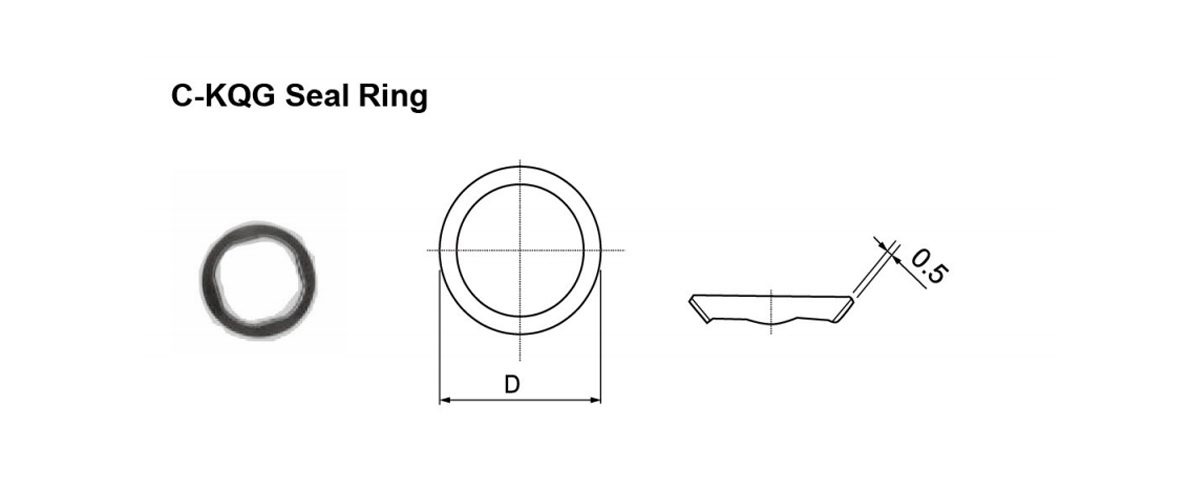

    Applicable Tubing O.D
    (mm)     		Connection Thread T ØD Weight
    (g)
    C-KQG-U01 18 11.8 0.12
    C-KQG-U02 14 15.3 0.19
    C-KQG-U03 3/8 18.7 0.23
    C-KQG-U04 12 23.4 0.34

منتجات ذات صلة

المدونة والأخبار

أحدث أخبارنا و
مدونة

عرض المزيد

الجودة الموثوقة والأصيلة تبرز بشكل طبيعي.

الاختيار يأتي من الثقة، والتعاون يأتي من الصدق.

  • س: متى يمكننا الحصول على الرد بعد أن نرسل لك استفسارًا؟

    سوف نقوم بالرد عليك في غضون 24 ساعة بعد تلقي الاستفسار في أيام العمل.

  • س: هل أنت منتج مباشر أو شركة تجارية؟

    نحن الشركة المصنعة، ولدينا قسم المبيعات الدولية الخاصة. حتى نتمكن من إنتاج وبيع كل شيء بأنفسنا.

  • س: هل يمكنك صنع منتجات مخصصة؟

    نعم، يمكننا تطوير وإنتاج المنتجات وفقًا للرسومات أو العينات المقدمة من العملاء.

  • س: كيف تضمن شركتك جودة المنتج؟

    بادئ ذي بدء، سنقوم بالفحص بعد كل عملية. بالنسبة للمنتجات النهائية، سنجري فحصًا بنسبة 100٪ وفقًا لمتطلبات العملاء والمعايير الدولية.

  • س: أين يتم تصدير منتجاتك بشكل رئيسي؟

    يتم تصدير منتجاتنا بشكل رئيسي إلى ألمانيا والولايات المتحدة والدنمارك وأكثر من اثنتي عشرة دولة في أوروبا وأمريكا الشمالية
